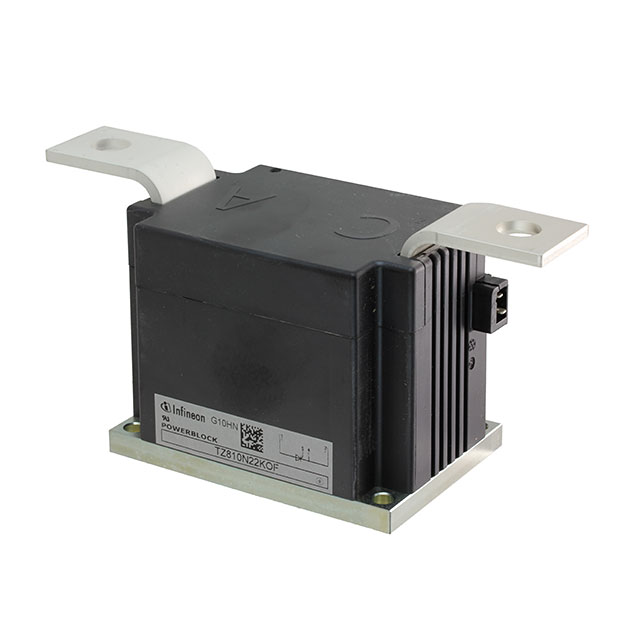

TZ810N22KOFHPSA2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TZ810N22KOFHPSA2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TZ810N22KOFHPSA2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TZ810N22KOFHPSA2 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | THYRISTOR MODULE 2200V 819A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $144.064 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TZ810N22KOFHPSA2 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | THYRISTOR MODULE 2200V 819A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 238 pcs | Data sheet | TZ810N22KOF |
| Category | Discrete Semiconductor Products | Voltage - Off State | 2.2kV |
| Voltage - Gate Trigger (Vgt) (Max) | 2V | Structure | Single |
| Series | - | Packaging | Bulk |
| Package / Case | Module | Other Names | SP001220516 TZ810N22KOF TZ810N22KOF-ND |
| Operating Temperature | 125°C (TJ) | Number of SCRs, Diodes | 1 SCR |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | SCR Module 2.2kV 1500A Single Surface Mount Module | Current - On State (It (RMS)) (Max) | 1500A |
| Current - On State (It (AV)) (Max) | 819A | Current - Non Rep. Surge 50, 60Hz (Itsm) | - |
| Current - Hold (Ih) (Max) | 500mA | Current - Gate Trigger (Igt) (Max) | 250mA |
