SPU09P06PL

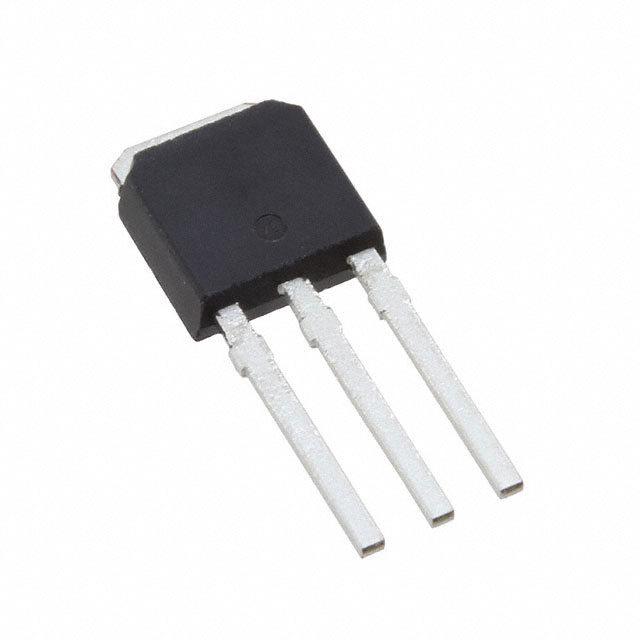

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SPU09P06PL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SPU09P06PL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SPU09P06PL |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET P-CH 60V 9.7A TO-251 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SPU09P06PL | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET P-CH 60V 9.7A TO-251 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5909 pcs | Data sheet | SPD,SPU09P06PL |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PG-TO251-3 | Series | SIPMOS® |
| Rds On (Max) @ Id, Vgs | 250 mOhm @ 6.8A, 10V | Power Dissipation (Max) | 42W (Tc) |
| Packaging | Tube | Package / Case | TO-251-3 Short Leads, IPak, TO-251AA |
| Other Names | SP000012876 SPU09P06PLIN SPU09P06PLX SPU09P06PLXTIN SPU09P06PLXTIN-ND |
Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 450pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 21nC @ 10V | FET Type | P-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 60V | Detailed Description | P-Channel 60V 9.7A (Tc) 42W (Tc) Through Hole PG-TO251-3 |
| Current - Continuous Drain (Id) @ 25°C | 9.7A (Tc) |
