SPP16N50C3XKSA1

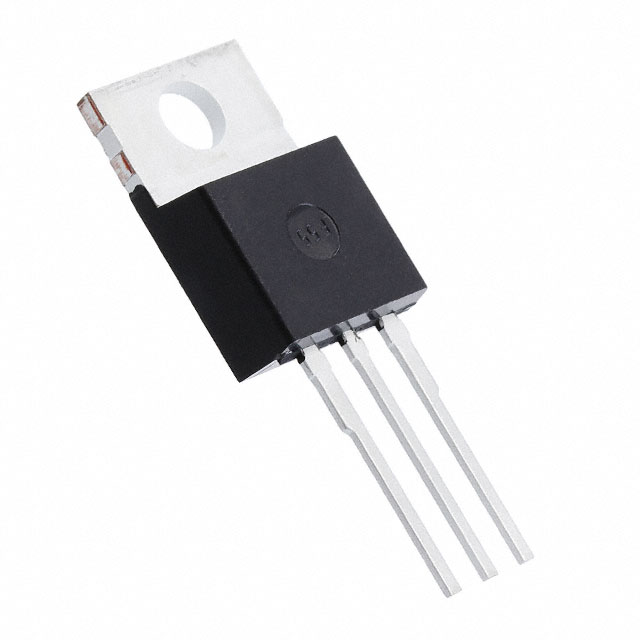

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SPP16N50C3XKSA1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SPP16N50C3XKSA1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SPP16N50C3XKSA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET N-CH 560V 16A TO-220AB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SPP16N50C3XKSA1 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET N-CH 560V 16A TO-220AB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5579 pcs | Data sheet | SPx16N50C3 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3.9V @ 675µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-220-3 | Series | CoolMOS™ |
| Rds On (Max) @ Id, Vgs | 280 mOhm @ 10A, 10V | Power Dissipation (Max) | 160W (Tc) |
| Packaging | Tube | Package / Case | TO-220-3 Full Pack |
| Other Names | SP000681056 | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 1600pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 66nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 560V | Detailed Description | N-Channel 560V 16A (Tc) 160W (Tc) Through Hole TO-220-3 |
| Current - Continuous Drain (Id) @ 25°C | 16A (Tc) |
