SPA20N60CFDXKSA1

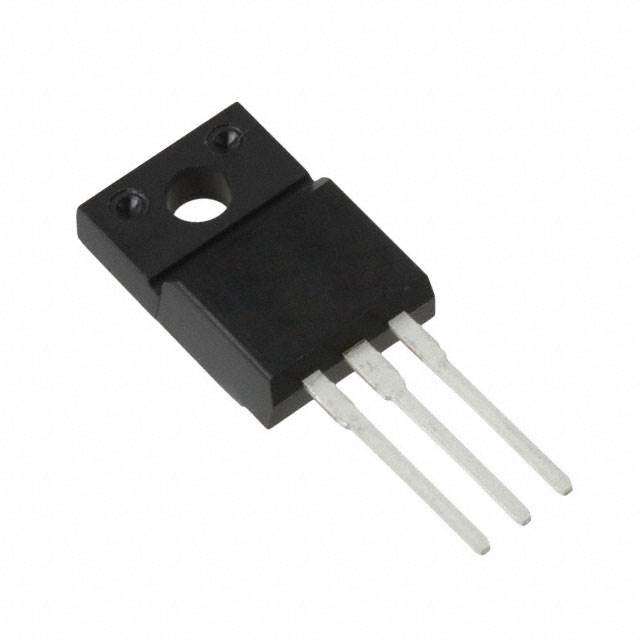

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SPA20N60CFDXKSA1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SPA20N60CFDXKSA1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SPA20N60CFDXKSA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET N-CH 600V 20.7A TO220-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $1.291 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SPA20N60CFDXKSA1 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET N-CH 600V 20.7A TO220-3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29241 pcs | Data sheet | SPA20N60CFD |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 5V @ 1mA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PG-TO220-FP | Series | CoolMOS™ |
| Rds On (Max) @ Id, Vgs | 220 mOhm @ 13.1A, 10V | Power Dissipation (Max) | 35W (Tc) |
| Packaging | Tube | Package / Case | TO-220-3 Full Pack |
| Other Names | SP000216361 SPA20N60CFD SPA20N60CFD-ND |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 2400pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 124nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 600V | Detailed Description | N-Channel 600V 20.7A (Tc) 35W (Tc) Through Hole PG-TO220-FP |
| Current - Continuous Drain (Id) @ 25°C | 20.7A (Tc) |
