IRSM836-084MATR

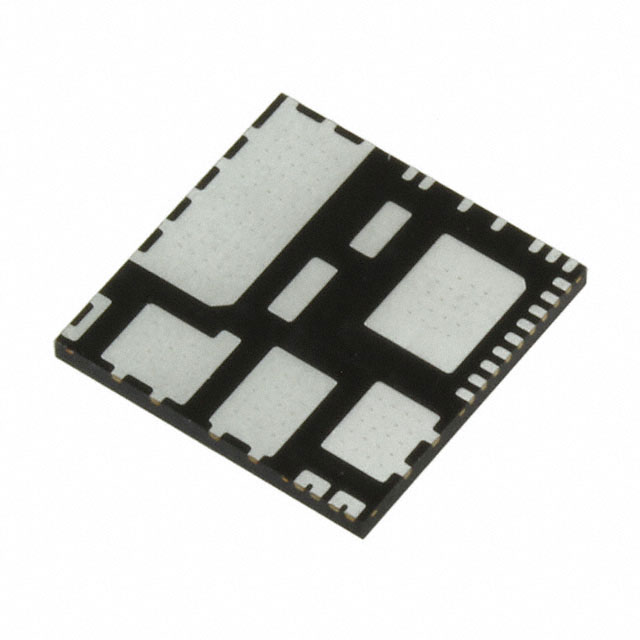

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IRSM836-084MATR with confidence from Components-World.HK, 1 Year Warranty
Dowload IRSM836-084MATR Details in PDFSee Product Specifications for product details.
Buy IRSM836-084MATR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IRSM836-084MATR |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IC HALF-BRIDGE DRVR 3CH 36PQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | ||||
|---|---|---|---|---|---|
| $1.579 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IRSM836-084MATR | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | IC HALF-BRIDGE DRVR 3CH 36PQFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22757 pcs | Data sheet | IRSM836-084MA |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 10 V ~ 20 V |
| Voltage - Load | 200V (Max) | Technology | UMOS |
| Supplier Device Package | 36-PQFN (12x12) | Series | µIPM™ |
| Rds On (Typ) | 310 mOhm | Packaging | Tape & Reel (TR) |
| Package / Case | 36-PowerVQFN | Output Configuration | Half Bridge (3) |
| Other Names | SP001549934 | Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 24 Weeks | Load Type | Inductive |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | Logic |
| Features | Bootstrap Circuit | Fault Protection | UVLO |
| Detailed Description | Half Bridge (3) Driver AC Motors UMOS 36-PQFN (12x12) | Current - Peak Output | 27A |
| Current - Output / Channel | 7A | Applications | AC Motors |
