IRSM005-301MHTR

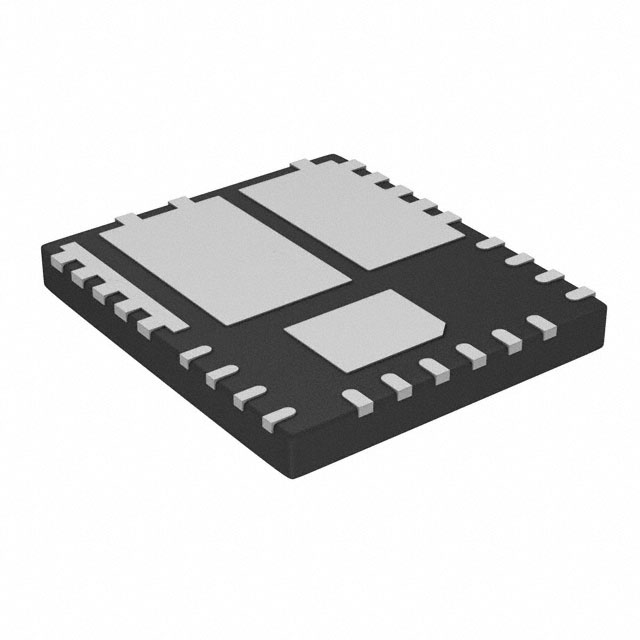

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IRSM005-301MHTR with confidence from Components-World.HK, 1 Year Warranty
Dowload IRSM005-301MHTR Details in PDFSee Product Specifications for product details.
Buy IRSM005-301MHTR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IRSM005-301MHTR |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IC GATE DRIVER 100V QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | ||||
|---|---|---|---|---|---|
| $0.662 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IRSM005-301MHTR | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | IC GATE DRIVER 100V QFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 46234 pcs | Data sheet | IRSM005-301MH |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 10 V ~ 20 V |
| Voltage - Load | 100V (Max) | Technology | Power MOSFET |
| Supplier Device Package | 27-PQFN (7x8) | Series | µIPM™ |
| Rds On (Typ) | 16 mOhm | Packaging | Tape & Reel (TR) |
| Package / Case | 27-PowerVQFN | Output Configuration | Half Bridge |
| Other Names | SP001540888 | Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 24 Weeks | Load Type | Inductive, Capacitive |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | Logic |
| Features | Bootstrap Circuit | Fault Protection | UVLO |
| Detailed Description | Half Bridge Driver AC Motors, DC Motors, DC-DC Converters, General Purpose Power MOSFET 27-PQFN (7x8) | Current - Peak Output | - |
| Current - Output / Channel | 30A | Applications | AC Motors, DC Motors, DC-DC Converters, General Purpose |
