IRLHS6242TRPBF

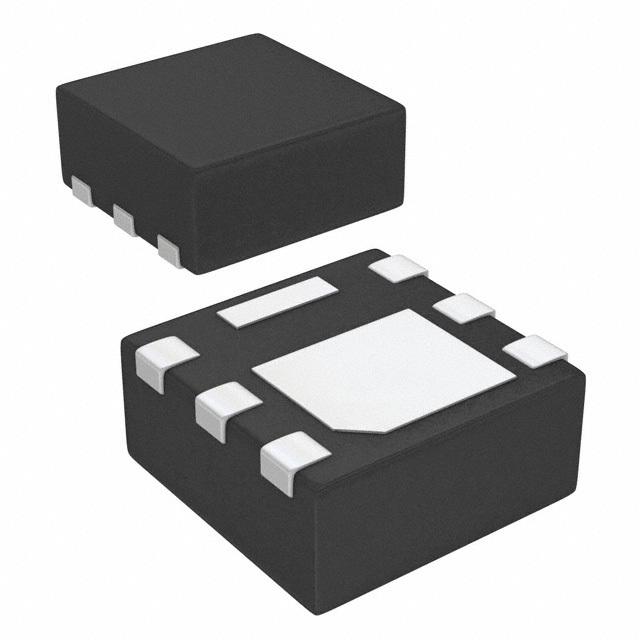

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IRLHS6242TRPBF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IRLHS6242TRPBF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IRLHS6242TRPBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET N-CH 20V 10A PQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | ||||
|---|---|---|---|---|---|
| $0.079 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IRLHS6242TRPBF | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET N-CH 20V 10A PQFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 258826 pcs | Data sheet | IRLHS6242PBF |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1.1V @ 10µA |
| Vgs (Max) | ±12V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 6-PQFN (2x2) | Series | HEXFET® |
| Rds On (Max) @ Id, Vgs | 11.7 mOhm @ 8.5A, 4.5V | Power Dissipation (Max) | 1.98W (Ta), 9.6W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | 6-PowerVDFN |
| Other Names | IRLHS6242TRPBF-ND IRLHS6242TRPBFTR SP001573008 |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 1110pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 14nC @ 4.5V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Drain to Source Voltage (Vdss) | 20V | Detailed Description | N-Channel 20V 10A (Ta), 12A (Tc) 1.98W (Ta), 9.6W (Tc) Surface Mount 6-PQFN (2x2) |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta), 12A (Tc) |
