IRL80HS120

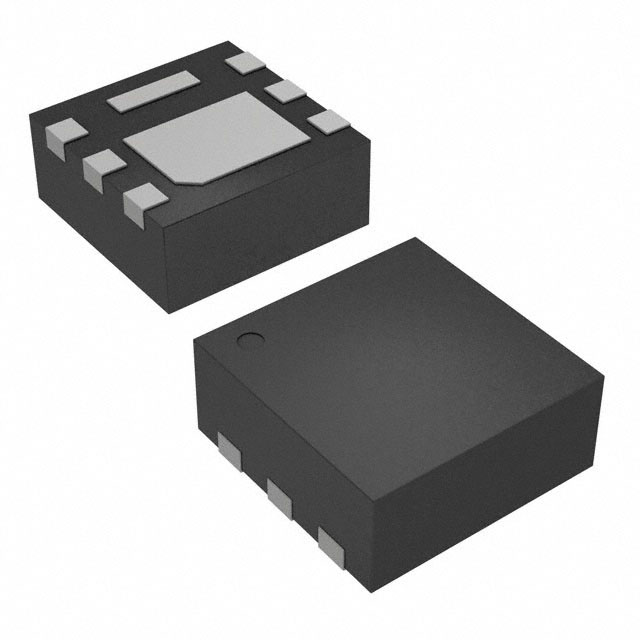

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IRL80HS120 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IRL80HS120 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IRL80HS120 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET N-CH 80V 12.5A 6PQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | ||||
|---|---|---|---|---|---|
| $0.152 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IRL80HS120 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET N-CH 80V 12.5A 6PQFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 126452 pcs | Data sheet | IRL80HS120 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2V @ 10µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 6-PQFN (2x2) | Series | - |
| Rds On (Max) @ Id, Vgs | 32 mOhm @ 7.5A, 10V | Power Dissipation (Max) | 11.5W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | 6-VDFN Exposed Pad |
| Other Names | IRL80HS120TR SP001592838 |
Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 540pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 7nC @ 4.5V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 80V | Detailed Description | N-Channel 80V 12.5A (Tc) 11.5W (Tc) Surface Mount 6-PQFN (2x2) |
| Current - Continuous Drain (Id) @ 25°C | 12.5A (Tc) |
