IRL6297SDTRPBF

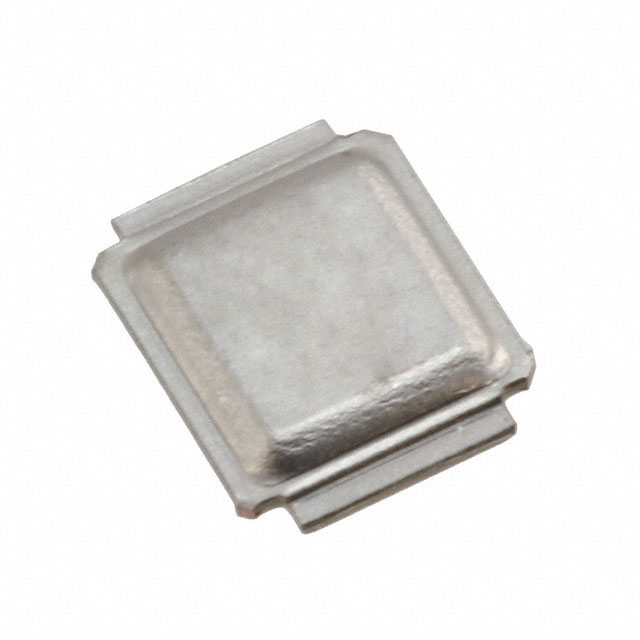

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IRL6297SDTRPBF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IRL6297SDTRPBF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IRL6297SDTRPBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET 2N-CH 20V 15A DIRECTFET |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4800 pcs | ||||
|---|---|---|---|---|---|
| $0.18 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IRL6297SDTRPBF | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET 2N-CH 20V 15A DIRECTFET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 133412 pcs | Data sheet | IRL6297SDTRPbF |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1.1V @ 35µA |
| Supplier Device Package | DIRECTFET™ SA | Series | HEXFET® |
| Rds On (Max) @ Id, Vgs | 4.9 mOhm @ 15A, 4.5V | Power - Max | 1.7W |
| Packaging | Tape & Reel (TR) | Package / Case | DirectFET™ Isometric SA |
| Other Names | IRL6297SDTRPBF-ND IRL6297SDTRPBFTR SP001578724 |
Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 2245pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 54nC @ 10V | FET Type | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate | Drain to Source Voltage (Vdss) | 20V |
| Detailed Description | Mosfet Array 2 N-Channel (Dual) 20V 15A 1.7W Surface Mount DIRECTFET™ SA | Current - Continuous Drain (Id) @ 25°C | 15A |
