IRL60HS118

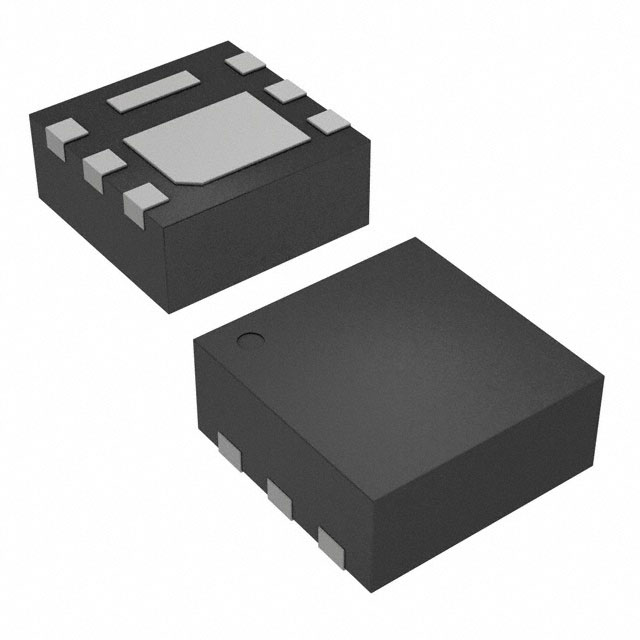

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IRL60HS118 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IRL60HS118 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IRL60HS118 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET N-CH 60V 18.5A 6PQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.425 | $0.377 | $0.298 | $0.231 | $0.183 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | IRL60HS118 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET N-CH 60V 18.5A 6PQFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 105186 pcs | Data sheet | IRL60HS118 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.3V @ 10µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 6-PQFN (2x2) | Series | - |
| Rds On (Max) @ Id, Vgs | 17 mOhm @ 11A, 10V | Power Dissipation (Max) | 11.5W (Tc) |
| Packaging | Original-Reel® | Package / Case | 6-VDFN Exposed Pad |
| Other Names | IRL60HS118DKR | Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 660pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 8nC @ 4.5V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 60V | Detailed Description | N-Channel 60V 18.5A (Tc) 11.5W (Tc) Surface Mount 6-PQFN (2x2) |
| Current - Continuous Drain (Id) @ 25°C | 18.5A (Tc) |
