Home > Products > Discrete Semiconductor Products > Transistors - IGBTs - Single > IRG7PSH54K10DPBF

IRG7PSH54K10DPBF

IRG7PSH54K10DPBF

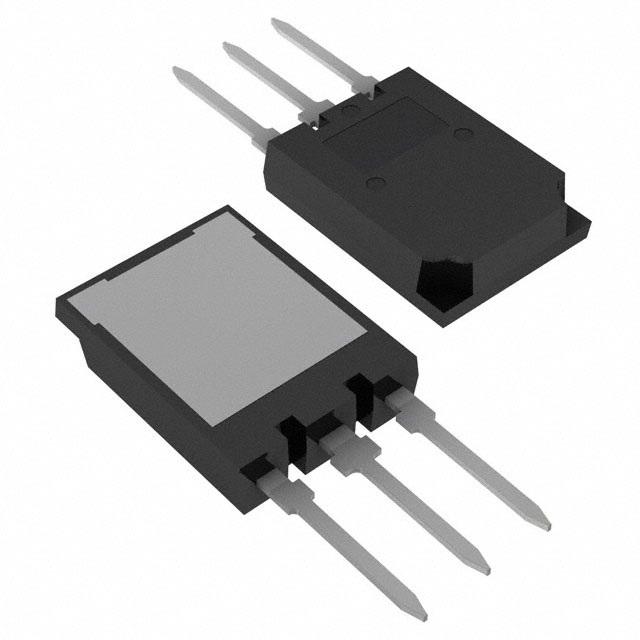

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IRG7PSH54K10DPBF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number IRG7PSH54K10DPBF
Manufacturer International Rectifier (Infineon Technologies)
Description IGBT 1200V 120A 520W TO274AA
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 5267 pcs
Reference Price
(In US Dollars)		Get a quote

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.00

Product parameter

Part Number IRG7PSH54K10DPBF Manufacturer International Rectifier (Infineon Technologies)
Description IGBT 1200V 120A 520W TO274AA Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 5267 pcs Data sheet IRG7PSH54K10DPbF
Category Discrete Semiconductor Products Voltage - Collector Emitter Breakdown (Max) 1200V
Vce(on) (Max) @ Vge, Ic 2.4V @ 15V, 50A Test Condition 600V, 50A, 5 Ohm, 15V
Td (on/off) @ 25°C 110ns/490ns Switching Energy 4.8mJ (on), 2.8mJ (off)
Supplier Device Package SUPER-247 (TO-274AA) Series -
Reverse Recovery Time (trr) 170ns Power - Max 520W
Packaging Tube Package / Case TO-247-3
Other Names SP001545858 Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Input Type Standard
IGBT Type - Gate Charge 435nC
Detailed Description IGBT 1200V 120A 520W Through Hole SUPER-247 (TO-274AA) Current - Collector Pulsed (Icm) 200A
Current - Collector (Ic) (Max) 120A
