IRFH9310TRPBF

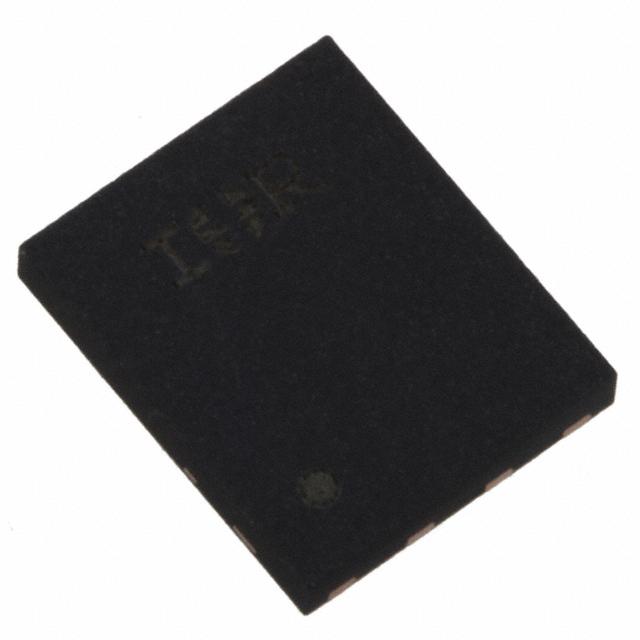

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IRFH9310TRPBF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IRFH9310TRPBF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IRFH9310TRPBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET P-CH 30V 21A PQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | ||||
|---|---|---|---|---|---|
| $0.255 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IRFH9310TRPBF | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET P-CH 30V 21A PQFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 74498 pcs | Data sheet | IRFH9310PBF |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.4V @ 100µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PQFN (5x6) | Series | HEXFET® |
| Rds On (Max) @ Id, Vgs | 4.6 mOhm @ 21A, 10V | Power Dissipation (Max) | 3.1W (Ta) |
| Packaging | Tape & Reel (TR) | Package / Case | 8-PowerVDFN |
| Other Names | IRFH9310TRPBF-ND IRFH9310TRPBFTR SP001556540 |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 5250pF @ 15V |
| Gate Charge (Qg) (Max) @ Vgs | 58nC @ 4.5V | FET Type | P-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | P-Channel 30V 21A (Ta), 40A (Tc) 3.1W (Ta) Surface Mount PQFN (5x6) |
| Current - Continuous Drain (Id) @ 25°C | 21A (Ta), 40A (Tc) |
