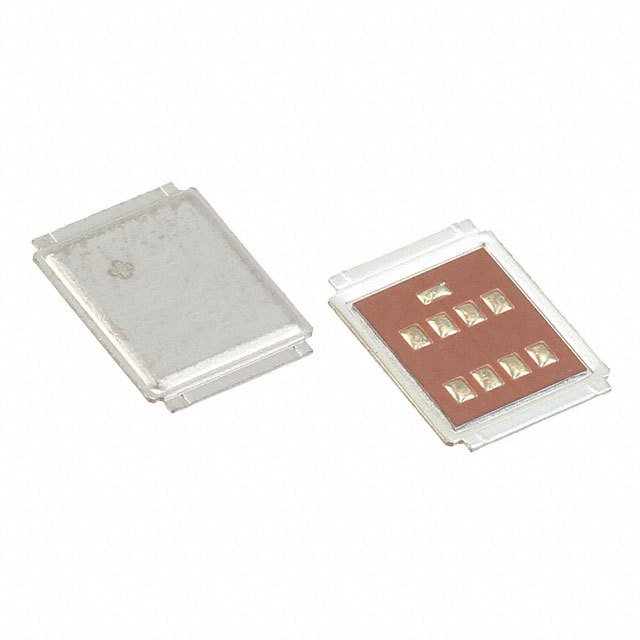

IRF7769L1TRPBF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IRF7769L1TRPBF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IRF7769L1TRPBF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IRF7769L1TRPBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET N-CH 100V 20A DIRECTFET |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | ||||
|---|---|---|---|---|---|
| $0.787 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IRF7769L1TRPBF | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET N-CH 100V 20A DIRECTFET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48441 pcs | Data sheet | IRF7769L1TRPbF |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | DIRECTFET L8 | Series | - |
| Rds On (Max) @ Id, Vgs | 3.5 mOhm @ 74A, 10V | Power Dissipation (Max) | 3.3W (Ta), 125W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | DirectFET™ Isometric L8 |
| Other Names | IRF7769L1TRPBF-ND IRF7769L1TRPBFTR SP001566418 |
Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 11560pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 300nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 100V | Detailed Description | N-Channel 100V 20A (Ta), 124A (Tc) 3.3W (Ta), 125W (Tc) Surface Mount DIRECTFET L8 |
| Current - Continuous Drain (Id) @ 25°C | 20A (Ta), 124A (Tc) |
