IRF520NLPBF

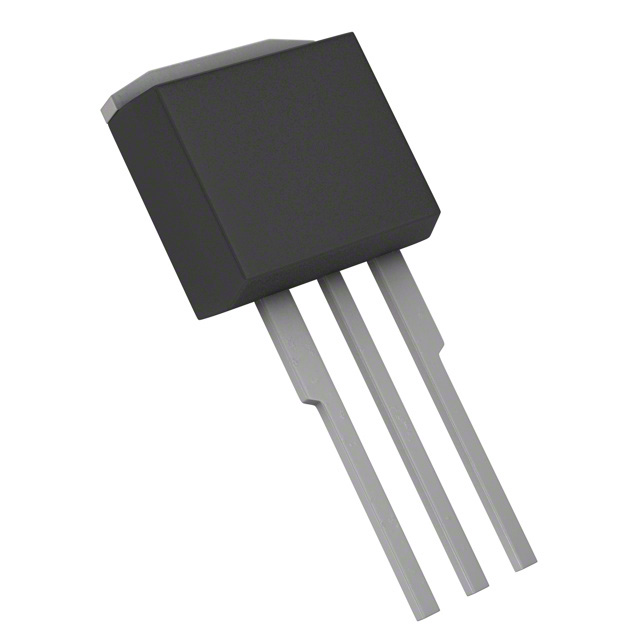

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IRF520NLPBF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IRF520NLPBF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IRF520NLPBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET N-CH 100V 9.7A TO-262 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 650 pcs | ||||
|---|---|---|---|---|---|
| $0.332 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IRF520NLPBF | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET N-CH 100V 9.7A TO-262 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67545 pcs | Data sheet | IRF520N(S,L)PbF |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-262 | Series | HEXFET® |
| Rds On (Max) @ Id, Vgs | 200 mOhm @ 5.7A, 10V | Power Dissipation (Max) | 3.8W (Ta), 48W (Tc) |
| Packaging | Tube | Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA |
| Other Names | *IRF520NLPBF | Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 330pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 25nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 100V | Detailed Description | N-Channel 100V 9.7A (Tc) 3.8W (Ta), 48W (Tc) Through Hole TO-262 |
| Current - Continuous Drain (Id) @ 25°C | 9.7A (Tc) |
