IRF40DM229

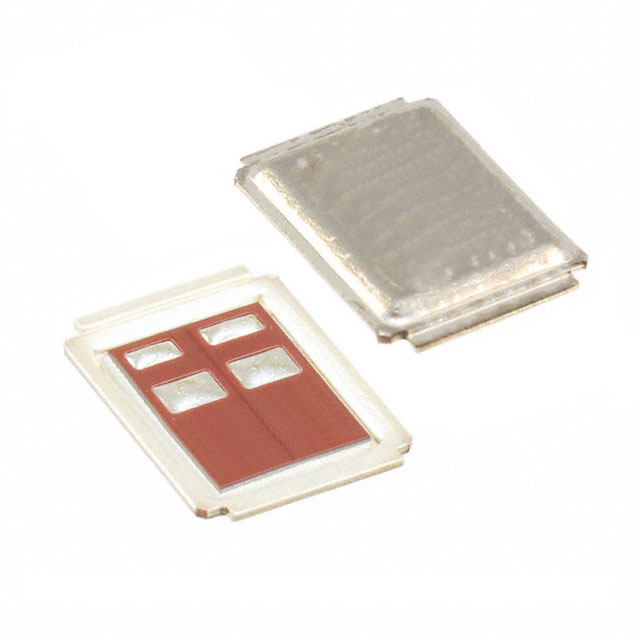

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IRF40DM229 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IRF40DM229 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IRF40DM229 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET N-CH 40V 159A ISOMETRICMF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4800 pcs | ||||
|---|---|---|---|---|---|
| $0.35 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IRF40DM229 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET N-CH 40V 159A ISOMETRICMF | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65848 pcs | Data sheet | IRF40DM229 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3.9V @ 100µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | DirectFET™ Isometric MF | Series | StrongIRFET™ |
| Rds On (Max) @ Id, Vgs | 1.85 mOhm @ 97A, 10V | Power Dissipation (Max) | 83W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | DirectFET™ Isometric MF |
| Other Names | IRF40DM229TR SP001576692 |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 5317pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 161nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Drain to Source Voltage (Vdss) | 40V | Detailed Description | N-Channel 40V 159A (Tc) 83W (Tc) Surface Mount DirectFET™ Isometric MF |
| Current - Continuous Drain (Id) @ 25°C | 159A (Tc) |
