IRF3546MTRPBF

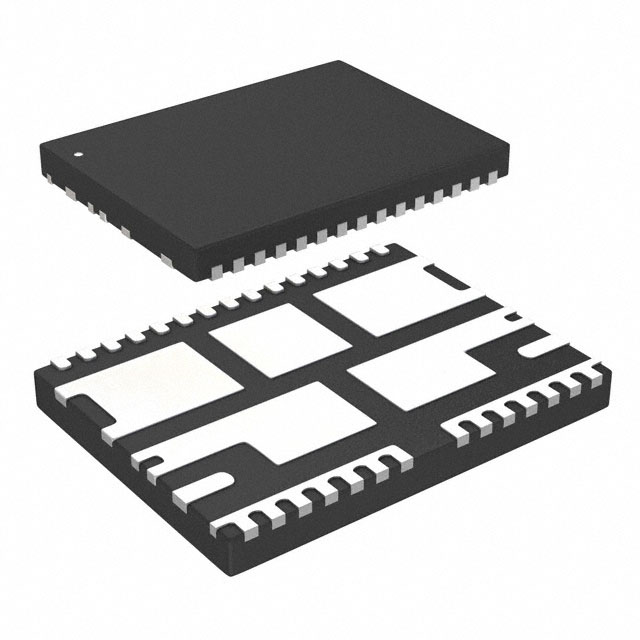

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IRF3546MTRPBF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IRF3546MTRPBF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IRF3546MTRPBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET 4N-CH 25V 16A/20A 41PQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $1.469 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IRF3546MTRPBF | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET 4N-CH 25V 16A/20A 41PQFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22991 pcs | Data sheet | IRF3546 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.1V @ 35µA |
| Supplier Device Package | 41-PQFN (6x8) | Series | - |
| Rds On (Max) @ Id, Vgs | 3.9 mOhm @ 27A, 10V | Power - Max | - |
| Packaging | Tape & Reel (TR) | Package / Case | 41-PowerVFQFN |
| Other Names | IRF3546MTRPBF-ND IRF3546MTRPBFTR SP001530116 |
Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 1310pF @ 13V |
| Gate Charge (Qg) (Max) @ Vgs | 15nC @ 4.5V | FET Type | 4 N-Channel |
| FET Feature | Logic Level Gate | Drain to Source Voltage (Vdss) | 25V |
| Detailed Description | Mosfet Array 4 N-Channel 25V 16A (Tc), 20A (Tc) Surface Mount 41-PQFN (6x8) | Current - Continuous Drain (Id) @ 25°C | 16A (Tc), 20A (Tc) |
