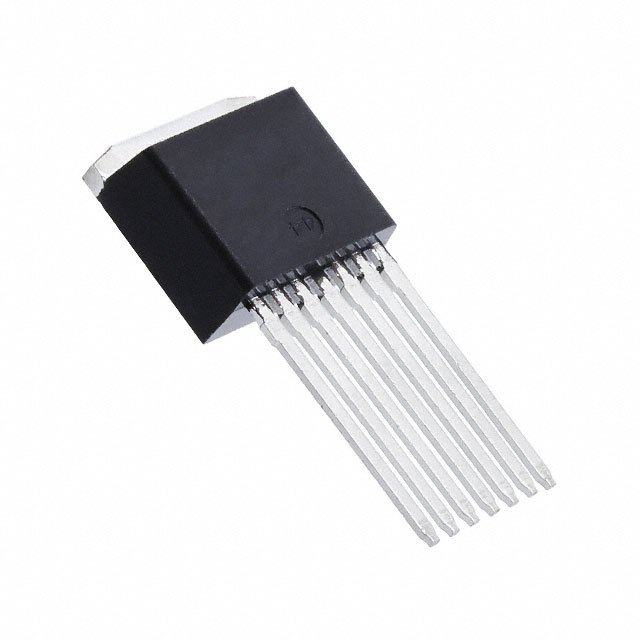

IRF1405ZL-7PPBF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IRF1405ZL-7PPBF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IRF1405ZL-7PPBF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IRF1405ZL-7PPBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET N-CH 55V 150A TO263CA-7 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IRF1405ZL-7PPBF | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET N-CH 55V 150A TO263CA-7 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5855 pcs | Data sheet | IRF1405Z (S,L) -7PPbF |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 150µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-263CA-7 | Series | HEXFET® |
| Rds On (Max) @ Id, Vgs | 4.9 mOhm @ 88A, 10V | Power Dissipation (Max) | 230W (Tc) |
| Packaging | Tube | Package / Case | TO-263-7 (Straight Leads) |
| Other Names | SP001563240 | Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 5360pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 230nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 55V | Detailed Description | N-Channel 55V 120A (Tc) 230W (Tc) Through Hole TO-263CA-7 |
| Current - Continuous Drain (Id) @ 25°C | 120A (Tc) |
