Home > Products > Discrete Semiconductor Products > Power Driver Modules > IRAMX20UP60A

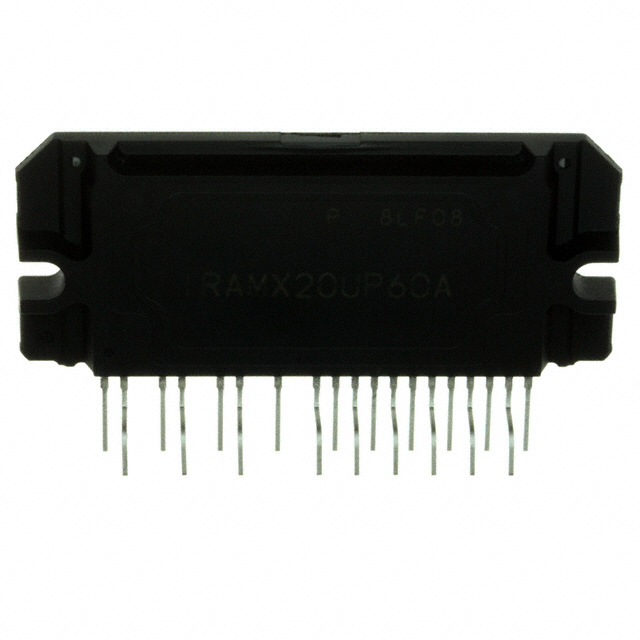

IRAMX20UP60A

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IRAMX20UP60A with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	IRAMX20UP60A
Manufacturer	International Rectifier (Infineon Technologies)
Description	IC PWR HYBRID 600V 20A SIP2
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4159 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	IRAMX20UP60A	Manufacturer	International Rectifier (Infineon Technologies)
Description	IC PWR HYBRID 600V 20A SIP2	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4159 pcs	Data sheet	IRAMX20UP60A
Category	Discrete Semiconductor Products	Voltage - Isolation	2000Vrms
Voltage	600V	Type	IGBT
Series	iMOTION™	Package / Case	23-PowerSIP Module, 19 Leads, Formed Leads
Other Names	SP001540410	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	Power Driver Module IGBT 3 Phase 600V 20A 23-PowerSIP Module, 19 Leads, Formed Leads
Current	20A	Configuration	3 Phase
