IR3103

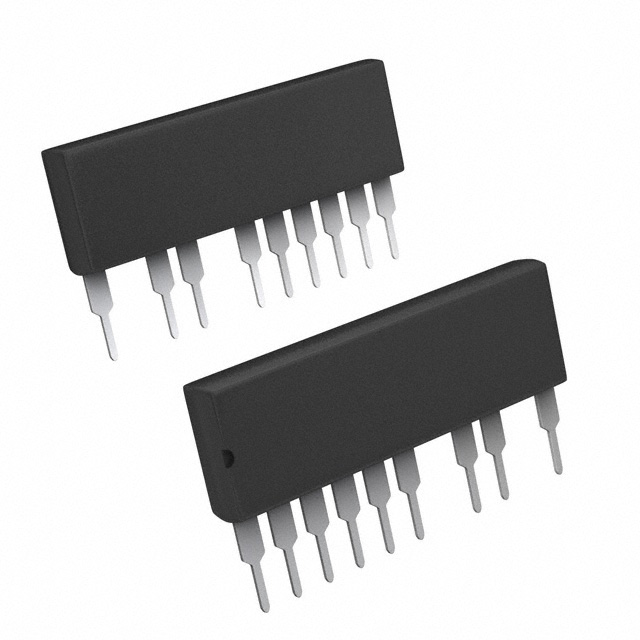

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IR3103 with confidence from Components-World.HK, 1 Year Warranty
Dowload IR3103 Details in PDFSee Product Specifications for product details.
Buy IR3103 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IR3103 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | PWR MOD 180W GATE DRIVER 11-SIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IR3103 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | PWR MOD 180W GATE DRIVER 11-SIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5862 pcs | Data sheet | IR3103 |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 10 V ~ 20 V |
| Supplier Device Package | 11-SIP | Series | iMOTION™ |
| Rise / Fall Time (Typ) | - | Packaging | Tube |
| Package / Case | 11-SIP, 9 Leads | Other Names | SP001535474 |
| Operating Temperature | -40°C ~ 150°C (TJ) | Number of Drivers | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Logic Voltage - VIL, VIH | 0.8V, 2.9V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Non-Inverting | High Side Voltage - Max (Bootstrap) | 500V |
| Gate Type | N-Channel MOSFET | Driven Configuration | Half-Bridge |
| Detailed Description | Half-Bridge Gate Driver IC Non-Inverting 11-SIP | Current - Peak Output (Source, Sink) | - |
| Channel Type | Independent | Base Part Number | IR3103 |
