IPW60R170CFD7XKSA1

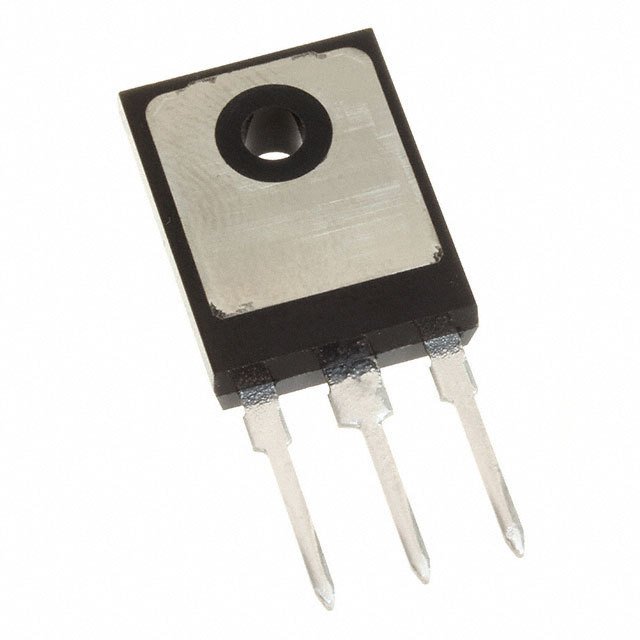

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPW60R170CFD7XKSA1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IPW60R170CFD7XKSA1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IPW60R170CFD7XKSA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET N-CH 600V TO247-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 240 pcs | 720 pcs | 1200 pcs |
|---|---|---|---|---|---|
| $1.394 | $1.243 | $1.02 | $0.826 | $0.696 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | IPW60R170CFD7XKSA1 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET N-CH 600V TO247-3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42922 pcs | Data sheet | IPW60R170CFD7 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4.5V @ 300µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PG-TO247-3 | Series | CoolMOS™ CFD7 |
| Rds On (Max) @ Id, Vgs | 170 mOhm @ 6A, 10V | Power Dissipation (Max) | 75W (Tc) |
| Packaging | Tube | Package / Case | TO-247-3 |
| Other Names | IPW60R170CFD7 SP001617988 |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 1199pF @ 400V |
| Gate Charge (Qg) (Max) @ Vgs | 28nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 650V | Detailed Description | N-Channel 650V 14A (Tc) 75W (Tc) Through Hole PG-TO247-3 |
| Current - Continuous Drain (Id) @ 25°C | 14A (Tc) |
