IPT65R105G7XTMA1

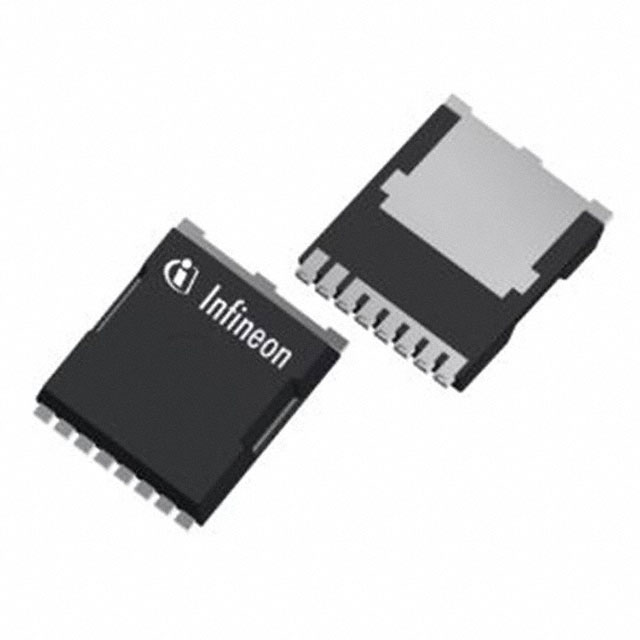

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPT65R105G7XTMA1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IPT65R105G7XTMA1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IPT65R105G7XTMA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | HIGH POWER_NEW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | ||||
|---|---|---|---|---|---|
| $1.22 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IPT65R105G7XTMA1 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | HIGH POWER_NEW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31812 pcs | Data sheet | IPT65R105G7 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 440µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PG-HSOF-8-2 | Series | CoolMOS™ C7 |
| Rds On (Max) @ Id, Vgs | 105 mOhm @ 8.9A, 10V | Power Dissipation (Max) | 156W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | 8-PowerSFN |
| Other Names | IPT65R105G7XTMA1-ND IPT65R105G7XTMA1TR SP001456204 |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 1670pF @ 400V |
| Gate Charge (Qg) (Max) @ Vgs | 35nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 650V | Detailed Description | N-Channel 650V 24A (Tc) 156W (Tc) Surface Mount PG-HSOF-8-2 |
| Current - Continuous Drain (Id) @ 25°C | 24A (Tc) |
