IPP100N04S204AKSA1

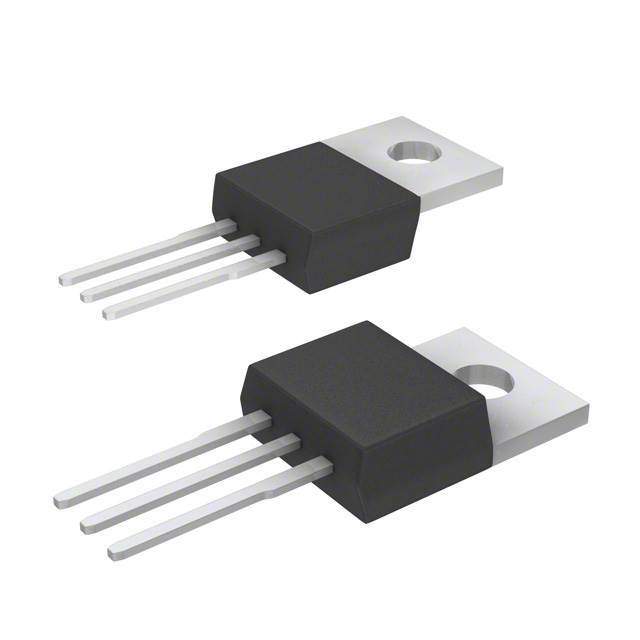

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPP100N04S204AKSA1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IPP100N04S204AKSA1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IPP100N04S204AKSA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET N-CH 40V 100A TO220-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IPP100N04S204AKSA1 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET N-CH 40V 100A TO220-3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3963 pcs | Data sheet | IPB,IPP100N04S2-04 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PG-TO220-3-1 | Series | OptiMOS™ |
| Rds On (Max) @ Id, Vgs | 3.6 mOhm @ 80A, 10V | Power Dissipation (Max) | 300W (Tc) |
| Packaging | Tube | Package / Case | TO-220-3 |
| Other Names | IPP100N04S2-04 IPP100N04S2-04-ND SP000219056 |
Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 5300pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 172nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 40V | Detailed Description | N-Channel 40V 100A (Tc) 300W (Tc) Through Hole PG-TO220-3-1 |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
