IPN50R1K4CEATMA1

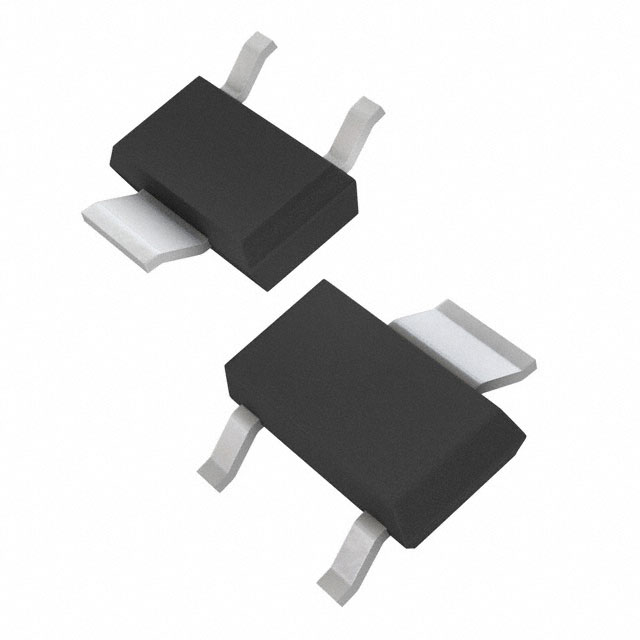

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPN50R1K4CEATMA1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IPN50R1K4CEATMA1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IPN50R1K4CEATMA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | CONSUMER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.067 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IPN50R1K4CEATMA1 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | CONSUMER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 290482 pcs | Data sheet | IPN50R1K4CE |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3.5V @ 70µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PG-SOT223 | Series | CoolMOS™ CE |
| Rds On (Max) @ Id, Vgs | 1.4 Ohm @ 900mA, 13V | Power Dissipation (Max) | 5W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | SOT-223-3 |
| Other Names | IPN50R1K4CEATMA1-ND IPN50R1K4CEATMA1TR SP001460674 |
Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 178pF @ 100V |
| Gate Charge (Qg) (Max) @ Vgs | 8.2nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 13V |
| Drain to Source Voltage (Vdss) | 500V | Detailed Description | N-Channel 500V 4.8A (Tc) 5W (Tc) Surface Mount PG-SOT223 |
| Current - Continuous Drain (Id) @ 25°C | 4.8A (Tc) |
