IPI086N10N3GXKSA1

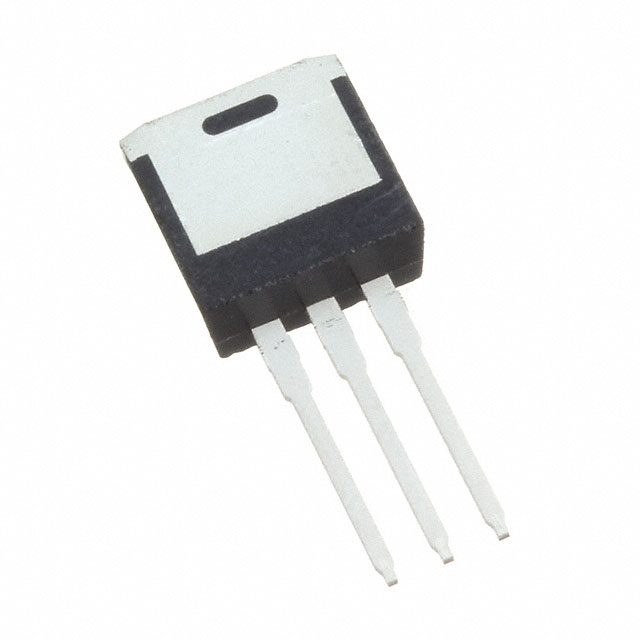

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPI086N10N3GXKSA1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IPI086N10N3GXKSA1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IPI086N10N3GXKSA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET N-CH 100V 80A TO262-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.622 | $0.551 | $0.436 | $0.338 | $0.267 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | IPI086N10N3GXKSA1 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET N-CH 100V 80A TO262-3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83637 pcs | Data sheet | IPx08xN10N3 G |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3.5V @ 75µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PG-TO262-3 | Series | OptiMOS™ |
| Rds On (Max) @ Id, Vgs | 8.6 mOhm @ 73A, 10V | Power Dissipation (Max) | 125W (Tc) |
| Packaging | Tube | Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA |
| Other Names | IPI086N10N3 G IPI086N10N3 G-ND IPI086N10N3G SP000485982 SP000683070 |
Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 3980pF @ 50V |
| Gate Charge (Qg) (Max) @ Vgs | 55nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Drain to Source Voltage (Vdss) | 100V | Detailed Description | N-Channel 100V 80A (Tc) 125W (Tc) Through Hole PG-TO262-3 |
| Current - Continuous Drain (Id) @ 25°C | 80A (Tc) |
