IPG20N06S2L50ATMA1

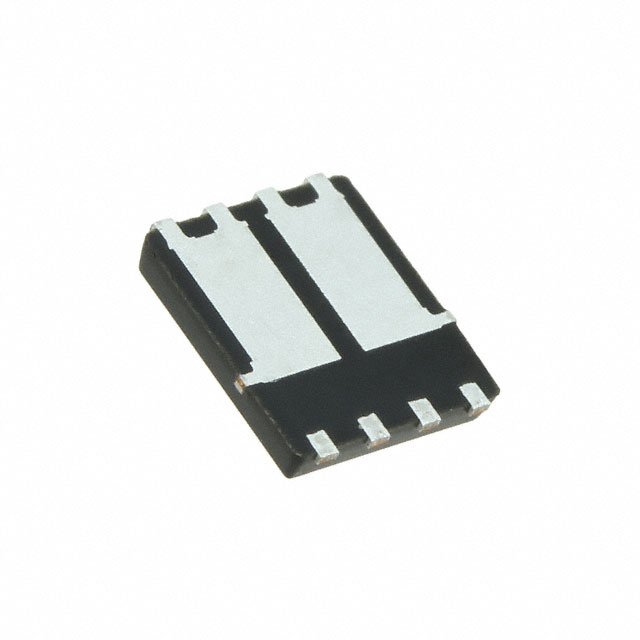

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPG20N06S2L50ATMA1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IPG20N06S2L50ATMA1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IPG20N06S2L50ATMA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET 2N-CH 55V 20A TDSON-8-4 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | ||||
|---|---|---|---|---|---|
| $0.191 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IPG20N06S2L50ATMA1 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET 2N-CH 55V 20A TDSON-8-4 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 118059 pcs | Data sheet | IPG20N06S2L-50 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2V @ 19µA |
| Supplier Device Package | PG-TDSON-8-4 | Series | OptiMOS™ |
| Rds On (Max) @ Id, Vgs | 50 mOhm @ 15A, 10V | Power - Max | 51W |
| Packaging | Tape & Reel (TR) | Package / Case | 8-PowerVDFN |
| Other Names | IPG20N06S2L-50 IPG20N06S2L-50-ND IPG20N06S2L50ATMA1TR SP000613728 |
Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 560pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 17nC @ 10V | FET Type | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate | Drain to Source Voltage (Vdss) | 55V |
| Detailed Description | Mosfet Array 2 N-Channel (Dual) 55V 20A 51W Surface Mount PG-TDSON-8-4 | Current - Continuous Drain (Id) @ 25°C | 20A |
| Base Part Number | *PG20N06 |
