IKQ120N60TXKSA1

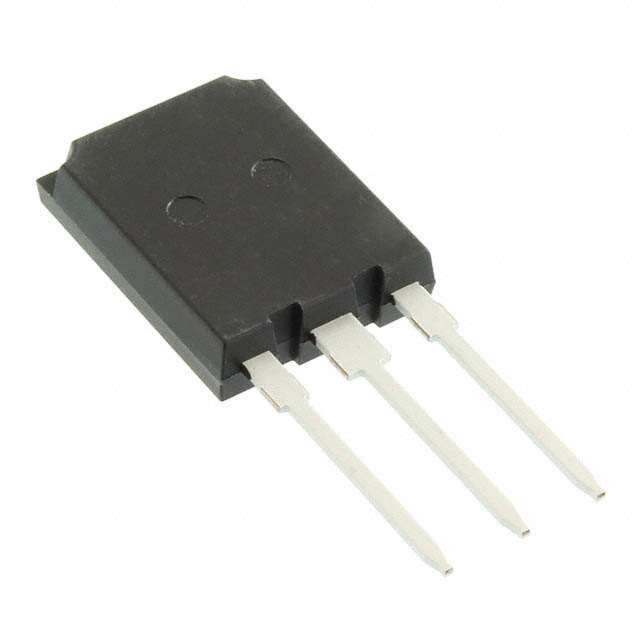

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IKQ120N60TXKSA1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IKQ120N60TXKSA1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IKQ120N60TXKSA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IGBT 600V 160A TO247-3-46 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 240 pcs | ||
|---|---|---|---|---|---|
| $5.412 | $4.975 | $4.201 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | IKQ120N60TXKSA1 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | IGBT 600V 160A TO247-3-46 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8813 pcs | Data sheet | IKQ120N60T |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 600V |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 120A | Test Condition | 400V, 120A, 3 Ohm, 15V |
| Td (on/off) @ 25°C | 50ns/565ns | Switching Energy | 6.2mJ (on), 5.9mJ (off) |
| Supplier Device Package | PG-TO247-3-46 | Series | TrenchStop™ |
| Reverse Recovery Time (trr) | 241ns | Power - Max | 833W |
| Packaging | Tube | Package / Case | TO-247-3 |
| Other Names | IKQ120N60T SP001138292 |
Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 52 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Standard | IGBT Type | Trench Field Stop |
| Gate Charge | 703nC | Detailed Description | IGBT Trench Field Stop 600V 160A 833W Through Hole PG-TO247-3-46 |
| Current - Collector Pulsed (Icm) | 480A | Current - Collector (Ic) (Max) | 160A |
