IFX9201SGAUMA1

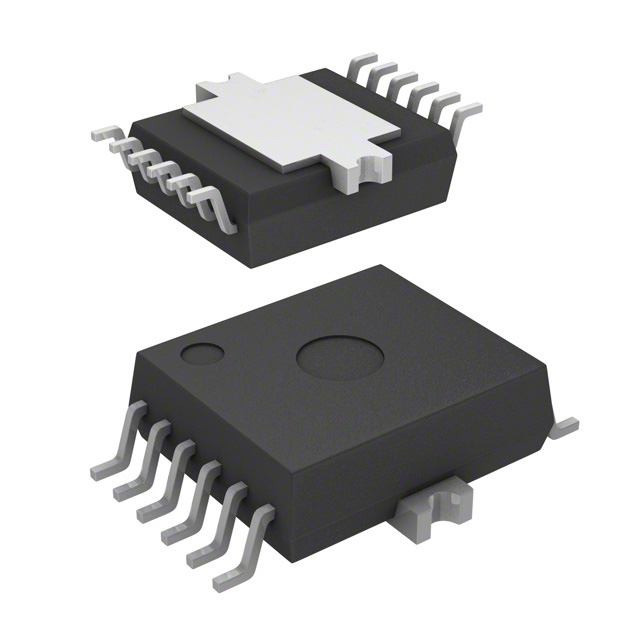

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IFX9201SGAUMA1 with confidence from Components-World.HK, 1 Year Warranty
Dowload IFX9201SGAUMA1 Details in PDFSee Product Specifications for product details.
Buy IFX9201SGAUMA1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IFX9201SGAUMA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IC HALF-BRIDGE DRVR 2 CH 12DSO |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $1.387 | $1.246 | $1.021 | $0.869 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | IFX9201SGAUMA1 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | IC HALF-BRIDGE DRVR 2 CH 12DSO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39184 pcs | Data sheet | IFX9201SG Datasheet |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 5 V ~ 36 V |
| Voltage - Load | 5 V ~ 36 V | Technology | Power MOSFET |
| Supplier Device Package | PG-DSO-12-17 | Series | - |
| Rds On (Typ) | 100 mOhm LS, 100 mOhm HS | Packaging | Original-Reel® |
| Package / Case | 12-BSOP (0.295", 7.50mm Width) Exposed Pad | Output Configuration | Half Bridge (2) |
| Other Names | IFX9201SGAUMA1DKR IFX9201SGDKR IFX9201SGDKR-ND |
Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 39 Weeks | Load Type | Inductive |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | PWM, SPI |
| Features | - | Fault Protection | Current Limiting, Open Load Detect, Over Temperature, Short Circuit, UVLO |
| Detailed Description | Half Bridge (2) Driver DC Motors, General Purpose Power MOSFET PG-DSO-12-17 | Current - Peak Output | - |
| Current - Output / Channel | 6A | Applications | DC Motors, General Purpose |
