Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Arrays > DD100N16SHPSA1

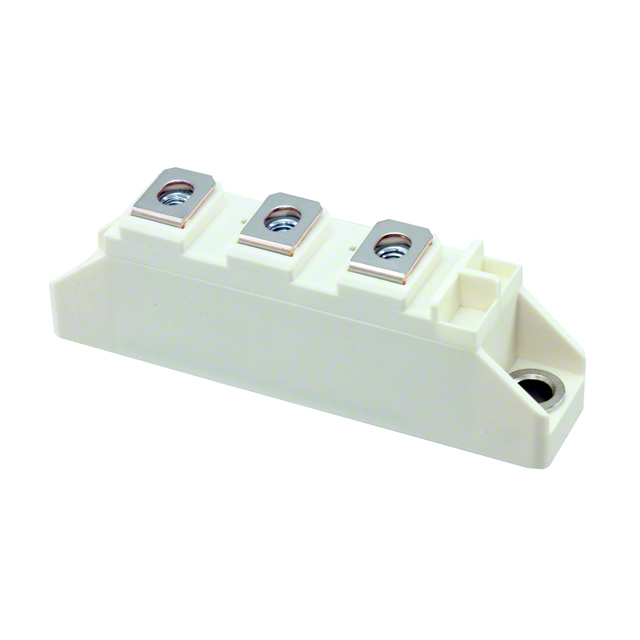

DD100N16SHPSA1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DD100N16SHPSA1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	DD100N16SHPSA1
Manufacturer	International Rectifier (Infineon Technologies)
Description	DIODE MODULE 1600V 100A
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4689 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs
Reference Price (In US Dollars)	$7.856	$7.246

Product parameter
Data sheet

Product parameter

Part Number	DD100N16SHPSA1	Manufacturer	International Rectifier (Infineon Technologies)
Description	DIODE MODULE 1600V 100A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4689 pcs	Data sheet	DD100N16S
Category	Discrete Semiconductor Products	Voltage - DC Reverse (Vr) (Max)	1600V
Supplier Device Package	Module	Series	*
Packaging	Bulk	Package / Case	Module
Other Names	DD100N16S DD100N16S-ND SP001272774	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Standard
Diode Configuration	1 Pair Series Connection	Detailed Description	Diode Array 1 Pair Series Connection Standard 1600V 130A Chassis Mount Module
Current - Average Rectified (Io) (per Diode)	130A
