BSZ123N08NS3GATMA1

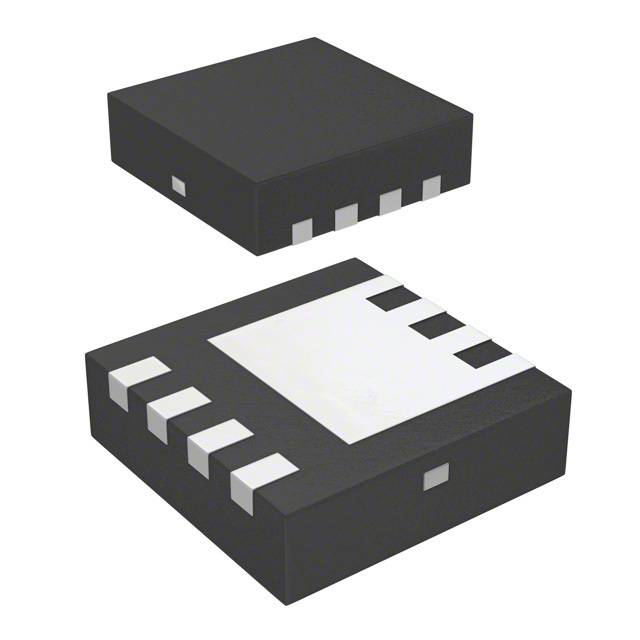

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BSZ123N08NS3GATMA1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BSZ123N08NS3GATMA1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BSZ123N08NS3GATMA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET N-CH 80V 40A TSDSON-8 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | ||||
|---|---|---|---|---|---|
| $0.203 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | BSZ123N08NS3GATMA1 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET N-CH 80V 40A TSDSON-8 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 102303 pcs | Data sheet | BSZ123N08NS3G |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3.5V @ 33µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PG-TSDSON-8 | Series | OptiMOS™ |
| Rds On (Max) @ Id, Vgs | 12.3 mOhm @ 20A, 10V | Power Dissipation (Max) | 2.1W (Ta), 66W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | 8-PowerVDFN |
| Other Names | BSZ123N08NS3 G BSZ123N08NS3G BSZ123N08NS3GATMA1TR BSZ123N08NS3GINTR BSZ123N08NS3GINTR-ND BSZ123N08NS3GXT SP000443632 |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 1700pF @ 40V |
| Gate Charge (Qg) (Max) @ Vgs | 25nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Drain to Source Voltage (Vdss) | 80V | Detailed Description | N-Channel 80V 10A (Ta), 40A (Tc) 2.1W (Ta), 66W (Tc) Surface Mount PG-TSDSON-8 |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta), 40A (Tc) |
