BSF030NE2LQXUMA1

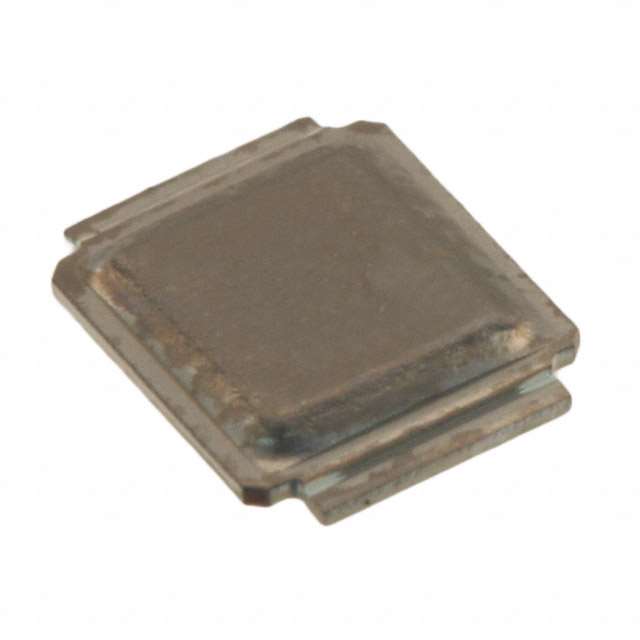

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BSF030NE2LQXUMA1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BSF030NE2LQXUMA1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BSF030NE2LQXUMA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET N-CH 25V 24A WDSON-2 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | ||||
|---|---|---|---|---|---|
| $0.156 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | BSF030NE2LQXUMA1 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET N-CH 25V 24A WDSON-2 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 121276 pcs | Data sheet | BSF030NE2LQ |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | MG-WDSON-2, CanPAK M™ | Series | OptiMOS™ |
| Rds On (Max) @ Id, Vgs | 3 mOhm @ 30A, 10V | Power Dissipation (Max) | 2.2W (Ta), 28W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | 3-WDSON |
| Other Names | BSF030NE2LQ BSF030NE2LQ-ND BSF030NE2LQTR-ND BSF030NE2LQXUMA1TR SP000756348 |
Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 1700pF @ 12V |
| Gate Charge (Qg) (Max) @ Vgs | 23nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 25V | Detailed Description | N-Channel 25V 24A (Ta), 75A (Tc) 2.2W (Ta), 28W (Tc) Surface Mount MG-WDSON-2, CanPAK M™ |
| Current - Continuous Drain (Id) @ 25°C | 24A (Ta), 75A (Tc) |
