BSC042NE7NS3GATMA1

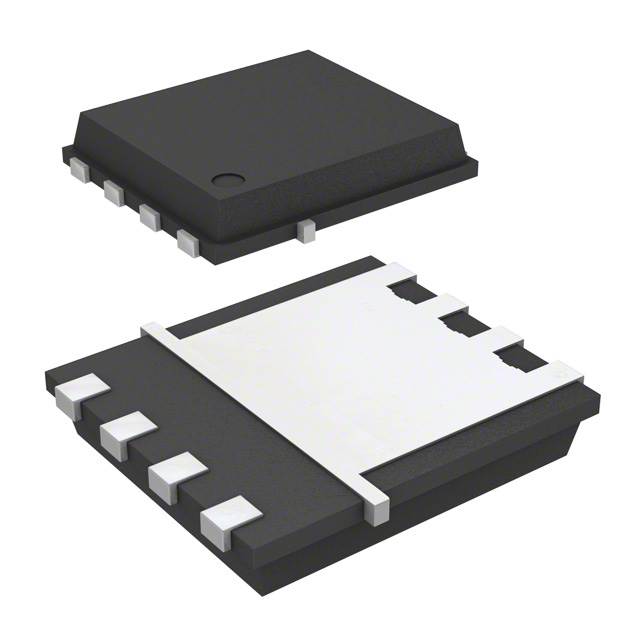

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BSC042NE7NS3GATMA1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BSC042NE7NS3GATMA1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BSC042NE7NS3GATMA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET N-CH 75V 100A TDSON-8 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.085 | $0.979 | $0.786 | $0.612 | $0.507 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | BSC042NE7NS3GATMA1 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET N-CH 75V 100A TDSON-8 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70287 pcs | Data sheet | BSC042NE7NS3 G |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3.8V @ 91µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PG-TDSON-8 | Series | OptiMOS™ |
| Rds On (Max) @ Id, Vgs | 4.2 mOhm @ 50A, 10V | Power Dissipation (Max) | 2.5W (Ta), 125W (Tc) |
| Packaging | Original-Reel® | Package / Case | 8-PowerTDFN |
| Other Names | BSC042NE7NS3 GDKR BSC042NE7NS3 GDKR-ND BSC042NE7NS3GATMA1DKR BSC042NE7NS3GATMA1DKR-NDTR-ND |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 4800pF @ 37.5V |
| Gate Charge (Qg) (Max) @ Vgs | 69nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 75V | Detailed Description | N-Channel 75V 19A (Ta), 100A (Tc) 2.5W (Ta), 125W (Tc) Surface Mount PG-TDSON-8 |
| Current - Continuous Drain (Id) @ 25°C | 19A (Ta), 100A (Tc) |
