BSC010N04LSTATMA1

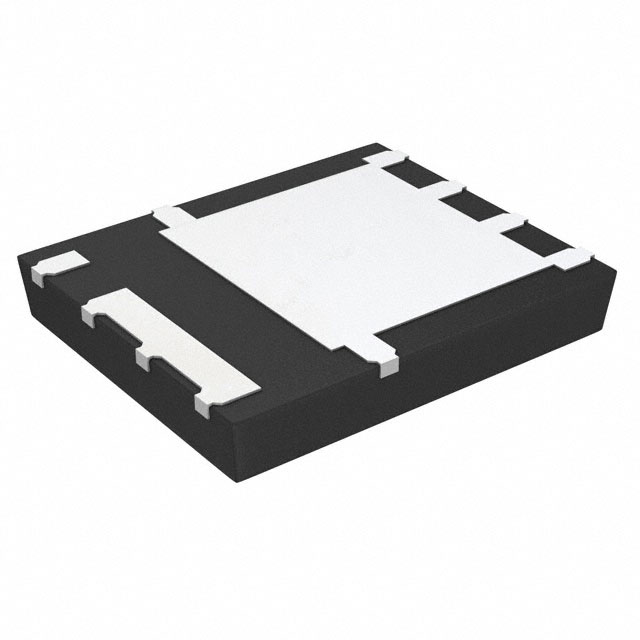

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BSC010N04LSTATMA1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BSC010N04LSTATMA1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BSC010N04LSTATMA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | DIFFERENTIATED MOSFETS |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | ||||
|---|---|---|---|---|---|
| $0.61 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | BSC010N04LSTATMA1 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | DIFFERENTIATED MOSFETS | Lead Free Status / RoHS Status | RoHS Compliant |
| Quantity Available | 49762 pcs | Data sheet | BSC010N04LST |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PG-TDSON-8 FL | Series | OptiMOS™ |
| RoHS Status | RoHS Compliant | Rds On (Max) @ Id, Vgs | 1 mOhm @ 50A, 10V |
| Power Dissipation (Max) | 3W (Ta), 167W (Tc) | Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN | Other Names | BSC010N04LSTATMA1-ND BSC010N04LSTATMA1TR SP001657068 |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Input Capacitance (Ciss) (Max) @ Vds | 9520pF @ 20V |
| Gate Charge (Qg) (Max) @ Vgs | 133nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 40V | Detailed Description | N-Channel 40V 39A (Ta), 100A (Tc) 3W (Ta), 167W (Tc) Surface Mount PG-TDSON-8 FL |
| Current - Continuous Drain (Id) @ 25°C | 39A (Ta), 100A (Tc) |
