BGF106CE6328XTSA1

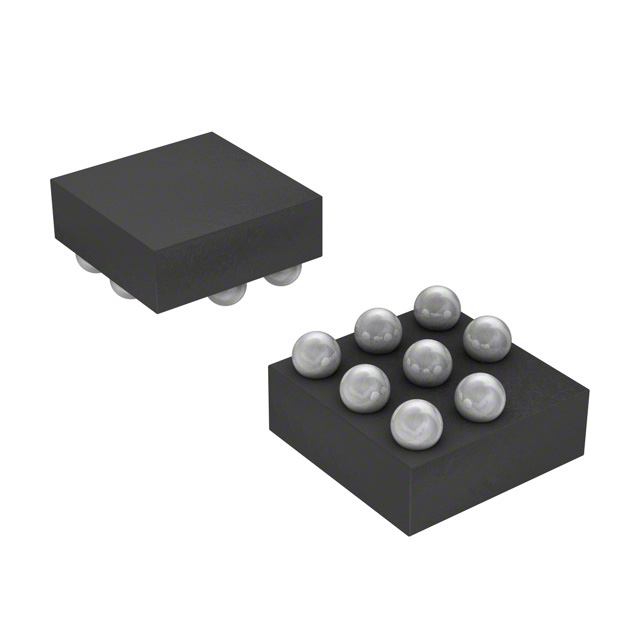

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BGF106CE6328XTSA1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BGF106CE6328XTSA1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BGF106CE6328XTSA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | FILTER RC 290MHZ ESD SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | BGF106CE6328XTSA1 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | FILTER RC 290MHZ ESD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4652 pcs | Data sheet | BGF106C Datasheet |
| Category | Filters | Voltage - Rated | 5.5V |
| Values | R = 47 Ohms, 100 Ohms, C = 16.5pF (Total) | Type | Low Pass |
| Technology | RC | Size / Dimension | 0.047" L x 0.047" W (1.20mm x 1.20mm) |
| Series | - | Resistance - Channel (Ohms) | 47, 100 |
| Packaging | Tape & Reel (TR) | Package / Case | 8-UFBGA, WLCSP |
| Other Names | BGF 106C E6328 BGF 106C E6328-ND BGF106CE6328XTSA1TR SP000646832 |
Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 3 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height | 0.026" (0.65mm) | Filter Order | 2nd |
| ESD Protection | Yes | Detailed Description | RC EMI Filter 2nd Order Low Pass 3 Channel R = 47 Ohms, 100 Ohms, C = 16.5pF (Total) 8-UFBGA, WLCSP |
| Center / Cutoff Frequency | 290MHz (Cutoff) | Attenuation Value | 16.9dB @ 800MHz ~ 4GHz |
| Applications | Data Lines for Mobile Devices |
