109CKH6R3M

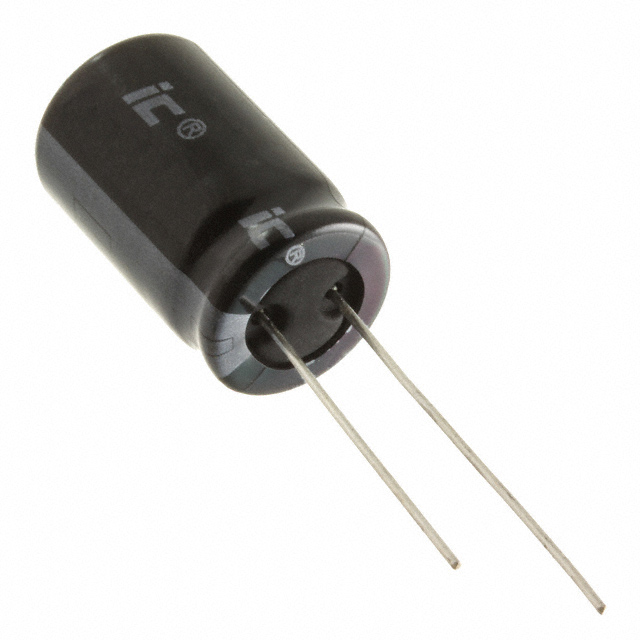

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 109CKH6R3M with confidence from Components-World.HK, 1 Year Warranty
Dowload 109CKH6R3M Details in PDFSee Product Specifications for product details.
Buy 109CKH6R3M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 109CKH6R3M |
|---|---|
| Manufacturer | Illinois Capacitor |
| Description | CAP ALUM 10000UF 20% 6.3V T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | ||||
|---|---|---|---|---|---|
| $0.178 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 109CKH6R3M | Manufacturer | Illinois Capacitor |
|---|---|---|---|
| Description | CAP ALUM 10000UF 20% 6.3V T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 114155 pcs | Data sheet | CKH/CKE Series Datasheet |
| Category | Capacitors | Voltage - Rated | 6.3V |
| Tolerance | ±20% | Surface Mount Land Size | - |
| Size / Dimension | 0.630" Dia (16.00mm) | Series | CKH |
| Ripple Current @ Low Frequency | 1.73A @ 120Hz | Ripple Current @ High Frequency | 2.422A @ 100kHz |
| Ratings | - | Polarization | Polar |
| Packaging | Bulk | Package / Case | Radial, Can |
| Operating Temperature | -40°C ~ 105°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 22 Weeks |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | Lead Spacing | 0.295" (7.50mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 1.240" (31.50mm) |
| ESR (Equivalent Series Resistance) | 66.3 mOhm @ 120Hz | Detailed Description | 10000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 66.3 mOhm @ 120Hz 2000 Hrs @ 105°C |
| Capacitance | 10000µF | Applications | General Purpose |
