IXRFSM18N50

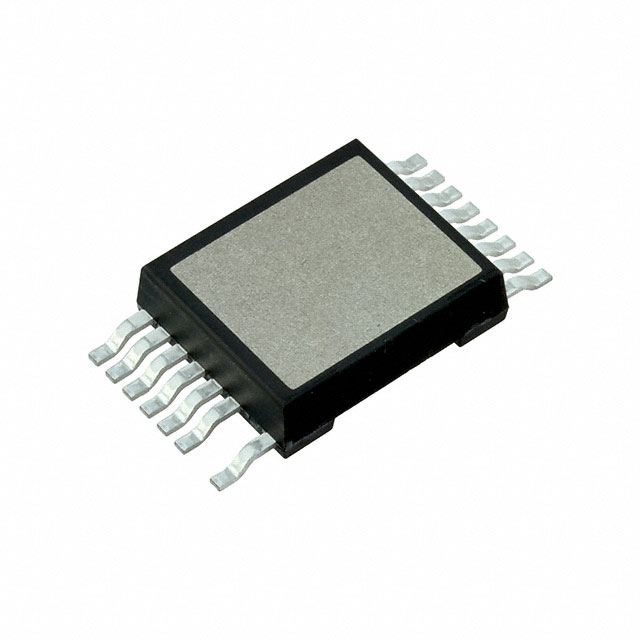

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IXRFSM18N50 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IXRFSM18N50 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IXRFSM18N50 |
|---|---|
| Manufacturer | IXYS RF |
| Description | 18A 500V MOSFET IN SMPD PACKAGE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 30 pcs | 120 pcs | ||
|---|---|---|---|---|---|
| $16.197 | $13.768 | $12.796 | |||
- Product parameter
Product parameter
| Part Number | IXRFSM18N50 | Manufacturer | IXYS RF |
|---|---|---|---|
| Description | 18A 500V MOSFET IN SMPD PACKAGE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2849 pcs | Data sheet | |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 6.5V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 16-SMPD | Series | SMPD |
| Rds On (Max) @ Id, Vgs | 340 mOhm @ 9.5A, 20V | Power Dissipation (Max) | 835W |
| Packaging | Tube | Package / Case | 16-BESOP (0.790", 20.11mm Width), 15 Leads, Exposed Pad |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 2250pF @ 400V |
| Gate Charge (Qg) (Max) @ Vgs | 42nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Drain to Source Voltage (Vdss) | 500V | Detailed Description | N-Channel 500V 19A (Tc) 835W Surface Mount 16-SMPD |
| Current - Continuous Drain (Id) @ 25°C | 19A (Tc) |
