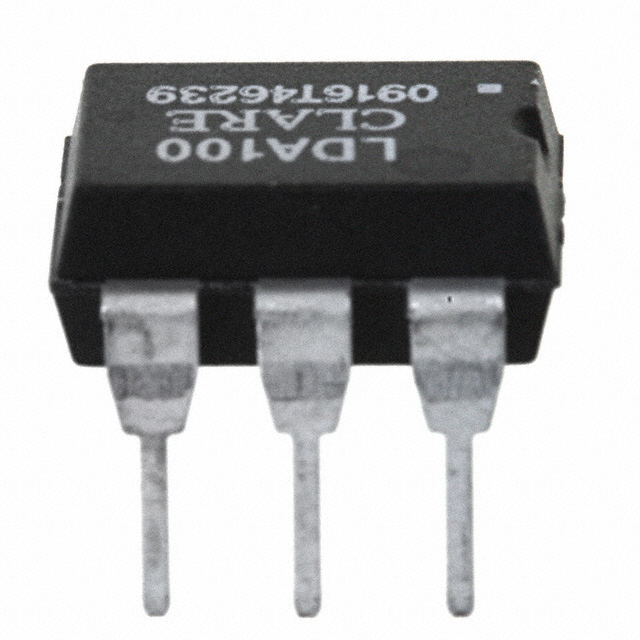

LDA100
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LDA100 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LDA100 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LDA100 |
|---|---|
| Manufacturer | IXYS Integrated Circuits Division |
| Description | OPTOISO 3.75KV TRANS W/BASE 6DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.407 | $0.33 | $0.254 | $0.229 | $0.203 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.173 | $0.142 | $0.135 | $0.132 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | LDA100 | Manufacturer | IXYS Integrated Circuits Division |
|---|---|---|---|
| Description | OPTOISO 3.75KV TRANS W/BASE 6DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 161825 pcs | Data sheet | LDA100S |
| Category | Isolators | Voltage - Output (Max) | 30V |
| Voltage - Isolation | 3750Vrms | Voltage - Forward (Vf) (Typ) | 1.2V |
| Vce Saturation (Max) | 500mV | Turn On / Turn Off Time (Typ) | 7µs, 20µs |
| Supplier Device Package | 6-DIP | Series | - |
| Rise / Fall Time (Typ) | - | Packaging | Tube |
| Package / Case | 6-DIP (0.300", 7.62mm) | Output Type | Transistor with Base |
| Other Names | CLA185 | Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | AC, DC |
| Detailed Description | Optoisolator Transistor with Base Output 3750Vrms 1 Channel 6-DIP | Current Transfer Ratio (Min) | 33% @ 1mA |
| Current Transfer Ratio (Max) | - | Current - Output / Channel | - |
| Current - DC Forward (If) (Max) | 1mA |
