CPC5001GSTR

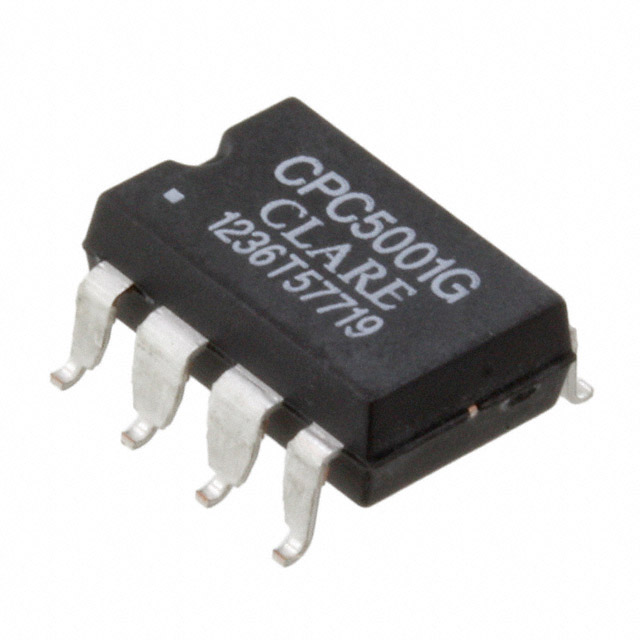

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CPC5001GSTR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CPC5001GSTR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CPC5001GSTR |
|---|---|
| Manufacturer | IXYS Integrated Circuits Division |
| Description | OPTOISO 3.75KV 2CH OPEN DRN 8SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $1.207 | $1.076 | $0.968 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.882 | $0.796 | $0.714 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CPC5001GSTR | Manufacturer | IXYS Integrated Circuits Division |
|---|---|---|---|
| Description | OPTOISO 3.75KV 2CH OPEN DRN 8SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 53025 pcs | Data sheet | CPC5001 |
| Category | Isolators | Voltage - Supply | 2.7 V ~ 5.5 V |
| Voltage - Isolation | 3750Vrms | Voltage - Forward (Vf) (Typ) | - |
| Supplier Device Package | - | Series | - |
| Rise / Fall Time (Typ) | - | Propagation Delay tpLH / tpHL (Max) | 250ns, 100ns |
| Packaging | Original-Reel® | Package / Case | 8-SMD, Gull Wing |
| Output Type | Open Drain | Other Names | CLA407DKR |
| Operating Temperature | -40°C ~ 85°C | Number of Channels | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inputs - Side 1/Side 2 | 1/1 | Input Type | Logic |
| Detailed Description | Logic Output Optoisolator 5MBd Open Drain 3750Vrms 2 Channel 5kV/µs, 7kV/µs CMTI | Data Rate | 5MBd |
| Current - DC Forward (If) (Max) | - | Common Mode Transient Immunity (Min) | 5kV/µs, 7kV/µs |
