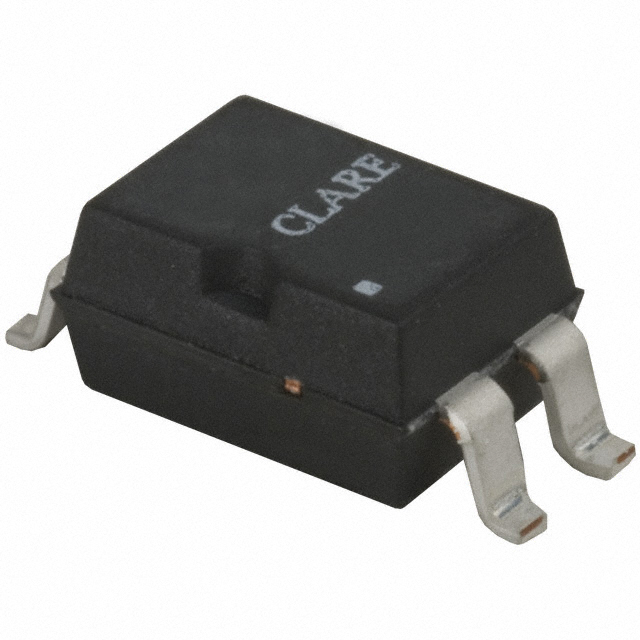

CPC1301GRTR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CPC1301GRTR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CPC1301GRTR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CPC1301GRTR |
|---|---|
| Manufacturer | IXYS Integrated Circuits Division |
| Description | OPTOISOLTR 5KV DARLINGTON 4-SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.472 | $0.384 | $0.295 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.266 | $0.236 | $0.201 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CPC1301GRTR | Manufacturer | IXYS Integrated Circuits Division |
|---|---|---|---|
| Description | OPTOISOLTR 5KV DARLINGTON 4-SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 101813 pcs | Data sheet | CPC1301 |
| Category | Isolators | Voltage - Output (Max) | 350V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.2V |
| Vce Saturation (Max) | 1.2V | Turn On / Turn Off Time (Typ) | 1µs, 80µs |
| Supplier Device Package | 4-SMD | Series | - |
| Rise / Fall Time (Typ) | 40µs, 2.6µs | Packaging | Cut Tape (CT) |
| Package / Case | 4-SMD, Gull Wing | Output Type | Darlington |
| Other Names | CLA294CT | Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Darlington Output 5000Vrms 1 Channel 4-SMD | Current Transfer Ratio (Min) | 1000% @ 1mA |
| Current Transfer Ratio (Max) | 8000% @ 1mA | Current - Output / Channel | - |
| Current - DC Forward (If) (Max) | 1mA |
