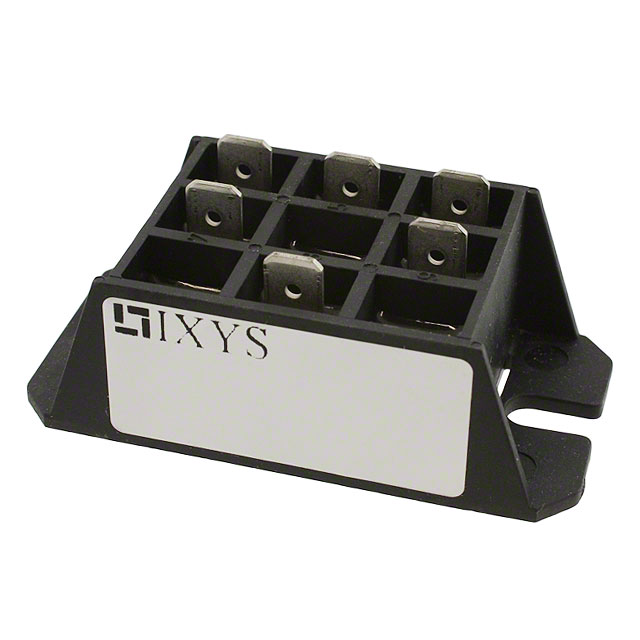

VHF15-16IO5
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VHF15-16IO5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy VHF15-16IO5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | VHF15-16IO5 |
|---|---|
| Manufacturer | IXYS Corporation |
| Description | RECT BRIDGE 1PH 1600V PWS-E-1 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $8.954 | $8.283 | $7.611 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $7.074 | $6.492 | $6.178 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | VHF15-16IO5 | Manufacturer | IXYS Corporation |
|---|---|---|---|
| Description | RECT BRIDGE 1PH 1600V PWS-E-1 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5616 pcs | Data sheet | VHF15 |
| Category | Discrete Semiconductor Products | Voltage - Off State | 1.6kV |
| Voltage - Gate Trigger (Vgt) (Max) | 1V | Structure | Bridge, Single Phase - SCRs/Diodes (Layout 1) |
| Series | - | Packaging | Bulk |
| Package / Case | PWS-E1 | Other Names | VHF1516IO5 |
| Operating Temperature | -40°C ~ 125°C (TJ) | Number of SCRs, Diodes | 2 SCRs, 2 Diodes |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 32 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | SCR Module 1.6kV 15A Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount PWS-E1 | Current - On State (It (RMS)) (Max) | 15A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 190A, 210A | Current - Hold (Ih) (Max) | 100mA |
| Current - Gate Trigger (Igt) (Max) | 65mA | Base Part Number | VHF15 |
