Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Arrays > MDD312-22N1

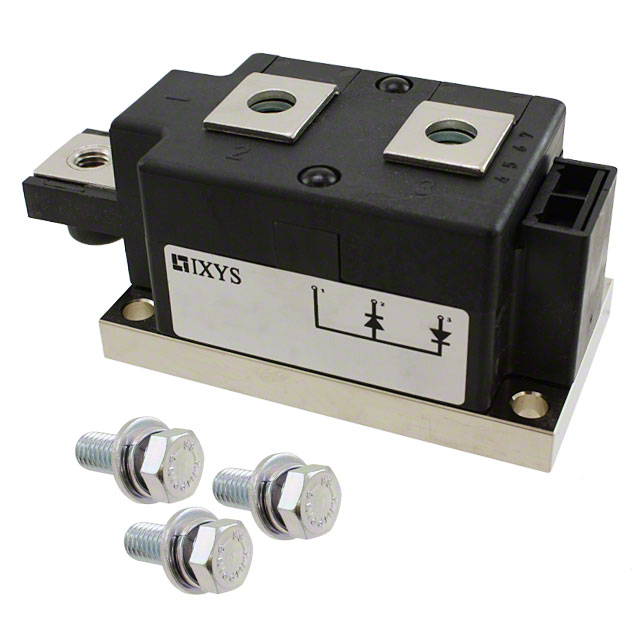

MDD312-22N1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MDD312-22N1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MDD312-22N1
Manufacturer	IXYS Corporation
Description	DIODE MODULE 2.2KV 310A Y1-CU
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 570 pcs
Reference Price (In US Dollars)	3 pcs
Reference Price (In US Dollars)	$59.868

Product parameter
Data sheet

Product parameter

Part Number	MDD312-22N1	Manufacturer	IXYS Corporation
Description	DIODE MODULE 2.2KV 310A Y1-CU	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	570 pcs	Data sheet	MDD312-22N1
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1.32V @ 600A
Voltage - DC Reverse (Vr) (Max)	2200V	Supplier Device Package	Y1-CU
Speed	Standard Recovery >500ns, > 200mA (Io)	Series	-
Packaging	Bulk	Package / Case	Y1-CU
Other Names	MDD31222N1	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	32 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Standard
Diode Configuration	1 Pair Series Connection	Detailed Description	Diode Array 1 Pair Series Connection Standard 2200V 310A Chassis Mount Y1-CU
Current - Reverse Leakage @ Vr	30mA @ 2200V	Current - Average Rectified (Io) (per Diode)	310A
Base Part Number	MDD312
