Home > Products > Discrete Semiconductor Products > Transistors - IGBTs - Modules > IXYN100N120C3H1

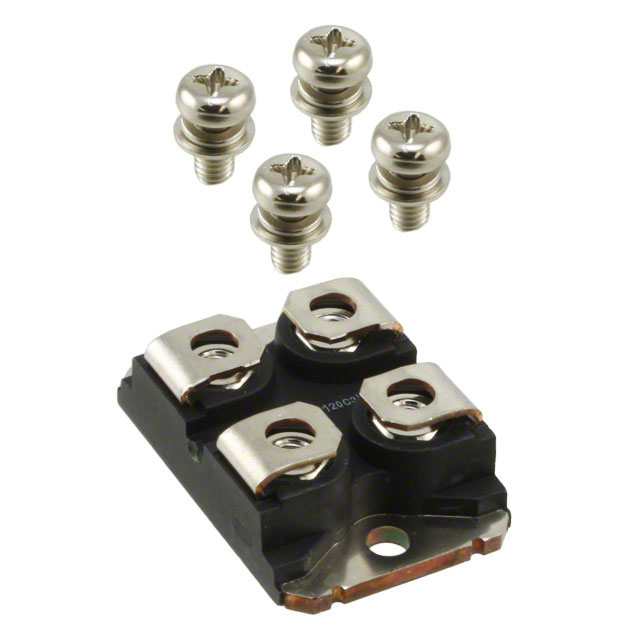

IXYN100N120C3H1

IXYN100N120C3H1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IXYN100N120C3H1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	IXYN100N120C3H1
Manufacturer	IXYS Corporation
Description	IGBT XPT 1200V 134A SOT-227B
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2751 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	30 pcs	100 pcs
Reference Price (In US Dollars)	$14.319	$13.389	$12.383	$11.609

Product parameter
Data sheet

Product parameter

Part Number	IXYN100N120C3H1	Manufacturer	IXYS Corporation
Description	IGBT XPT 1200V 134A SOT-227B	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2751 pcs	Data sheet	IXYN100N120C3H1
Category	Discrete Semiconductor Products	Voltage - Collector Emitter Breakdown (Max)	1200V
Vce(on) (Max) @ Vge, Ic	3.5V @ 15V, 100A	Supplier Device Package	SOT-227B
Series	XPT™, GenX3™	Power - Max	690W
Package / Case	SOT-227-4, miniBLOC	Operating Temperature	-55°C ~ 150°C (TJ)
NTC Thermistor	No	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Cies) @ Vce	6nF @ 25V	Input	Standard
IGBT Type	-	Detailed Description	IGBT Module Single 1200V 134A 690W Chassis Mount SOT-227B
Current - Collector Cutoff (Max)	50µA	Current - Collector (Ic) (Max)	134A
Configuration	Single
