IXYH25N250CHV

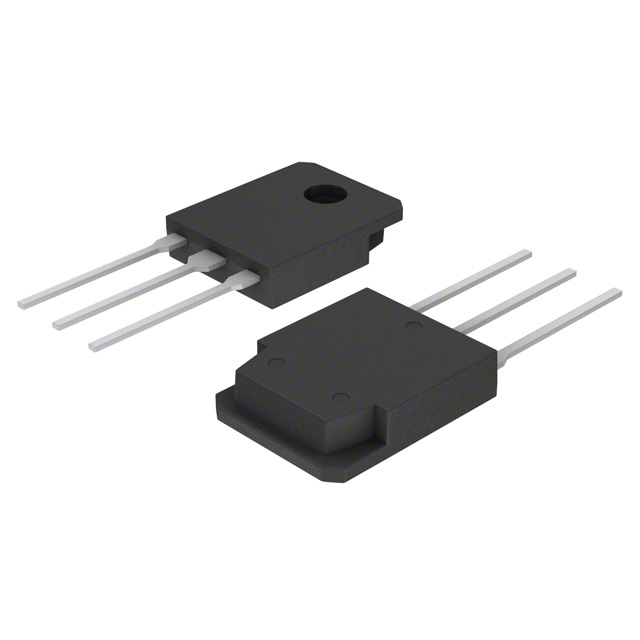

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IXYH25N250CHV with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IXYH25N250CHV with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IXYH25N250CHV |
|---|---|
| Manufacturer | IXYS Corporation |
| Description | IGBT 2500V 235A TO-247HV |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 120 pcs | 270 pcs |
|---|---|---|---|---|---|
| $9.074 | $8.395 | $7.714 | $7.169 | $6.58 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | IXYH25N250CHV | Manufacturer | IXYS Corporation |
|---|---|---|---|
| Description | IGBT 2500V 235A TO-247HV | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5884 pcs | Data sheet | IXYx25N250CHV |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 2500V |
| Vce(on) (Max) @ Vge, Ic | 4V @ 15V, 25A | Test Condition | 1250V, 25A, 5 Ohm, 15V |
| Td (on/off) @ 25°C | 15ns/230ns | Switching Energy | 8.3mJ (on), 7.3mJ (off) |
| Supplier Device Package | TO-247HV (IXYH) | Series | XPT™ |
| Reverse Recovery Time (trr) | 34ns | Power - Max | 937W |
| Packaging | Tube | Package / Case | TO-247-3 |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | Standard |
| IGBT Type | - | Gate Charge | 147nC |
| Detailed Description | IGBT 2500V 95A 937W Through Hole TO-247HV (IXYH) | Current - Collector Pulsed (Icm) | 235A |
| Current - Collector (Ic) (Max) | 95A |
