IXYA8N90C3D1

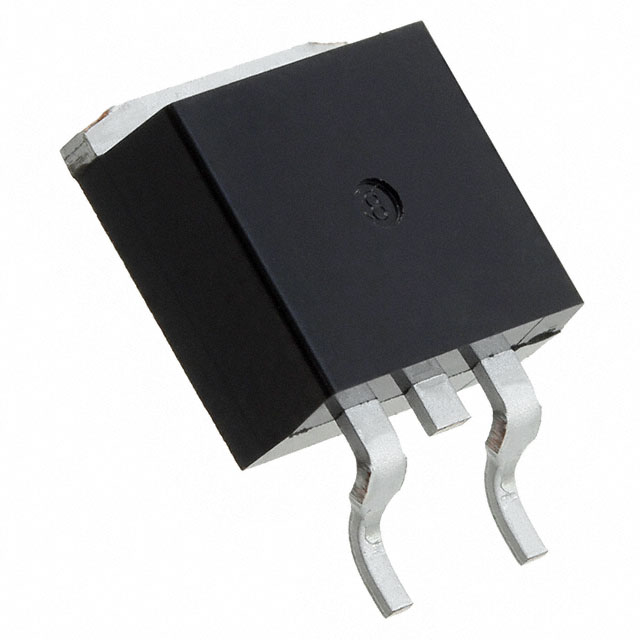

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IXYA8N90C3D1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IXYA8N90C3D1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IXYA8N90C3D1 |
|---|---|
| Manufacturer | IXYS Corporation |
| Description | IGBT 900V 20A 125W C3 TO-263AA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 50 pcs | ||||
|---|---|---|---|---|---|
| $1.257 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IXYA8N90C3D1 | Manufacturer | IXYS Corporation |
|---|---|---|---|
| Description | IGBT 900V 20A 125W C3 TO-263AA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28962 pcs | Data sheet | 900V XPT™ IGBTs Brief |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 900V |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 8A | Test Condition | 450V, 8A, 30 Ohm, 15V |
| Td (on/off) @ 25°C | 16ns/40ns | Switching Energy | 460µJ (on), 180µJ (off) |
| Supplier Device Package | TO-263AA | Series | GenX3™, XPT™ |
| Reverse Recovery Time (trr) | 114ns | Power - Max | 125W |
| Packaging | Tube | Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | Standard |
| IGBT Type | - | Gate Charge | 13.3nC |
| Detailed Description | IGBT 900V 20A 125W Surface Mount TO-263AA | Current - Collector Pulsed (Icm) | 48A |
| Current - Collector (Ic) (Max) | 20A |
