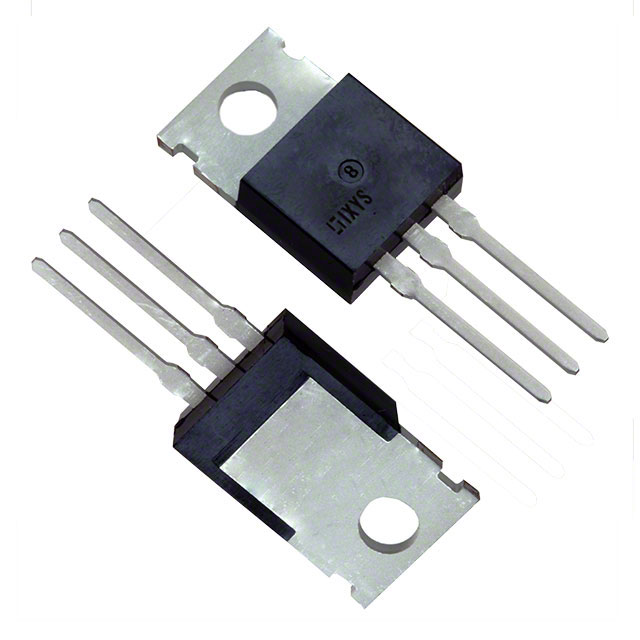

IXTP270N04T4
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IXTP270N04T4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IXTP270N04T4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IXTP270N04T4 |
|---|---|
| Manufacturer | IXYS Corporation |
| Description | MOSFET N-CH 40V 270A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 50 pcs | ||||
|---|---|---|---|---|---|
| $1.007 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IXTP270N04T4 | Manufacturer | IXYS Corporation |
|---|---|---|---|
| Description | MOSFET N-CH 40V 270A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32751 pcs | Data sheet | IXTP270N04T4, IXTH270N04T4 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±15V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-220AB | Series | TrenchT4™ |
| Rds On (Max) @ Id, Vgs | 2.4 mOhm @ 50A, 10V | Power Dissipation (Max) | 375W (Tc) |
| Packaging | Tube | Package / Case | TO-220-3 |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 9140pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 182nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 40V | Detailed Description | N-Channel 40V 270A (Tc) 375W (Tc) Through Hole TO-220AB |
| Current - Continuous Drain (Id) @ 25°C | 270A (Tc) |
