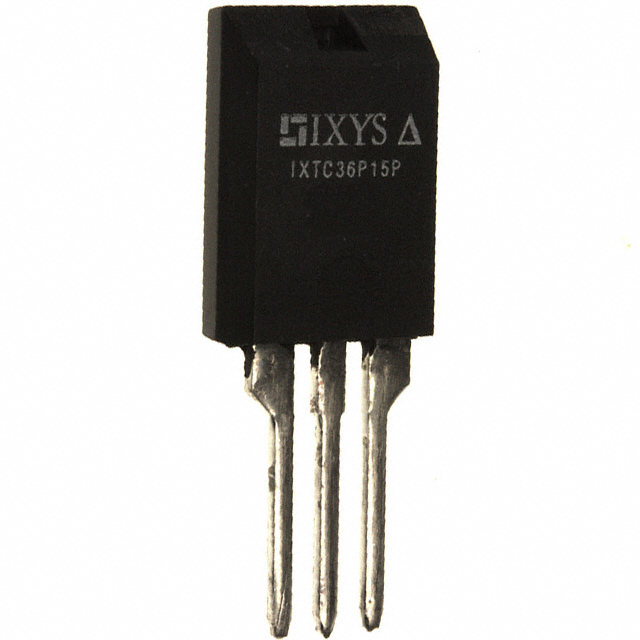

IXTC36P15P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IXTC36P15P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IXTC36P15P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IXTC36P15P |
|---|---|
| Manufacturer | IXYS Corporation |
| Description | MOSFET P-CH 150V 22A ISOPLUS220 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IXTC36P15P | Manufacturer | IXYS Corporation |
|---|---|---|---|
| Description | MOSFET P-CH 150V 22A ISOPLUS220 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4723 pcs | Data sheet | IXT(C,R)36P15P |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 5V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | ISOPLUS220™ | Series | PolarP™ |
| Rds On (Max) @ Id, Vgs | 120 mOhm @ 18A, 10V | Power Dissipation (Max) | 150W (Tc) |
| Packaging | Tube | Package / Case | ISOPLUS220™ |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 2950pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 55nC @ 10V |
| FET Type | P-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 150V |
| Detailed Description | P-Channel 150V 22A (Tc) 150W (Tc) Through Hole ISOPLUS220™ | Current - Continuous Drain (Id) @ 25°C | 22A (Tc) |
