IXSX40N60CD1

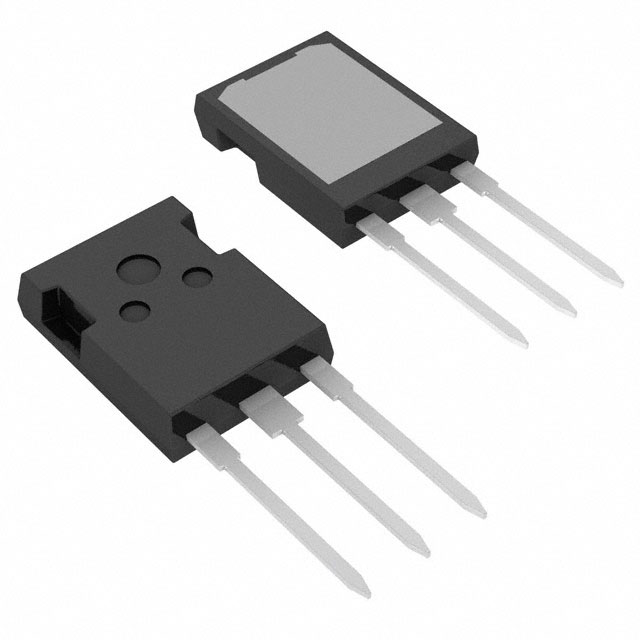

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IXSX40N60CD1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IXSX40N60CD1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IXSX40N60CD1 |
|---|---|
| Manufacturer | IXYS Corporation |
| Description | IGBT 600V 75A 280W PLUS247 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IXSX40N60CD1 | Manufacturer | IXYS Corporation |
|---|---|---|---|
| Description | IGBT 600V 75A 280W PLUS247 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4360 pcs | Data sheet | IXS(K,X)40N60CD1 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 600V |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 40A | Test Condition | 480V, 40A, 2.7 Ohm, 15V |
| Td (on/off) @ 25°C | 50ns/70ns | Switching Energy | 1mJ (off) |
| Supplier Device Package | PLUS247™-3 | Series | - |
| Reverse Recovery Time (trr) | 35ns | Power - Max | 280W |
| Packaging | Tube | Package / Case | TO-247-3 |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Standard | IGBT Type | - |
| Gate Charge | 190nC | Detailed Description | IGBT 600V 75A 280W Through Hole PLUS247™-3 |
| Current - Collector Pulsed (Icm) | 150A | Current - Collector (Ic) (Max) | 75A |
| Base Part Number | IXS*40N60 |
