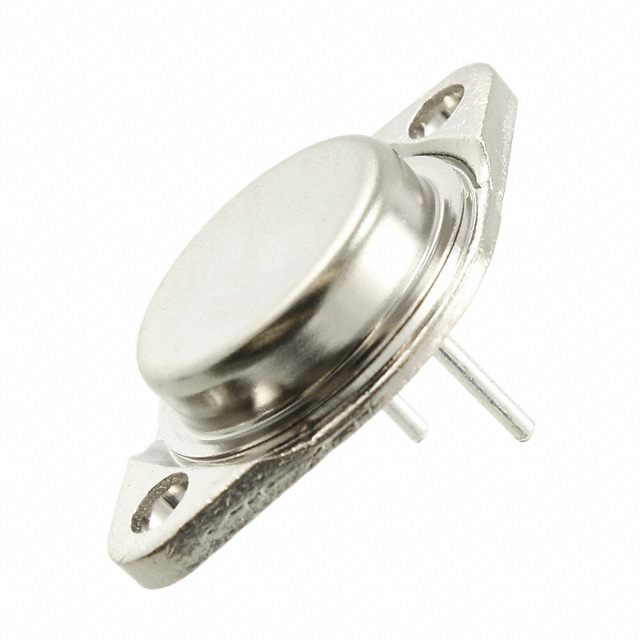

IXGM40N60A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IXGM40N60A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IXGM40N60A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IXGM40N60A |
|---|---|
| Manufacturer | IXYS Corporation |
| Description | IGBT LO VOLT 600V 75AMP TO-204AE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IXGM40N60A | Manufacturer | IXYS Corporation |
|---|---|---|---|
| Description | IGBT LO VOLT 600V 75AMP TO-204AE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4409 pcs | Data sheet | IXG(H,M)40N60/A |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 600V |
| Vce(on) (Max) @ Vge, Ic | 3V @ 15V, 40A | Supplier Device Package | TO-204 |
| Series | - | Power - Max | 250W |
| Package / Case | TO-204AA, TO-3 | Other Names | Q1516356 Q5828005 |
| Operating Temperature | -55°C ~ 150°C (TJ) | NTC Thermistor | No |
| Mounting Type | Chassis Mount | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Cies) @ Vce | 4.5nF @ 25V | Input | Standard |
| IGBT Type | - | Detailed Description | IGBT Module Single 600V 75A 250W Chassis Mount TO-204 |
| Current - Collector Cutoff (Max) | 200µA | Current - Collector (Ic) (Max) | 75A |
| Configuration | Single | Base Part Number | IXG*40N60 |
