Home > Products > Discrete Semiconductor Products > Transistors - IGBTs - Single > IXGH30N60C2D1

IXGH30N60C2D1

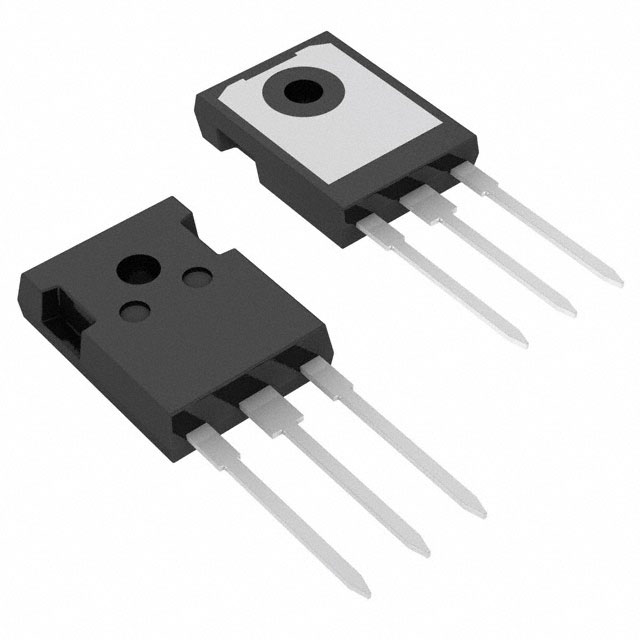

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IXGH30N60C2D1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	IXGH30N60C2D1
Manufacturer	IXYS Corporation
Description	IGBT 600V 70A 190W TO247
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5093 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	IXGH30N60C2D1	Manufacturer	IXYS Corporation
Description	IGBT 600V 70A 190W TO247	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5093 pcs	Data sheet	IXG(H,T)30N60C2D1
Category	Discrete Semiconductor Products	Voltage - Collector Emitter Breakdown (Max)	600V
Vce(on) (Max) @ Vge, Ic	2.7V @ 15V, 24A	Test Condition	400V, 24A, 5 Ohm, 15V
Td (on/off) @ 25°C	13ns/70ns	Switching Energy	190µJ (off)
Supplier Device Package	TO-247AD (IXGH)	Series	HiPerFAST™
Reverse Recovery Time (trr)	25ns	Power - Max	190W
Packaging	Tube	Package / Case	TO-247-3
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	Standard	IGBT Type	PT
Gate Charge	70nC	Detailed Description	IGBT PT 600V 70A 190W Through Hole TO-247AD (IXGH)
Current - Collector Pulsed (Icm)	150A	Current - Collector (Ic) (Max)	70A
Base Part Number	IXG*30N60
