IXGF36N300

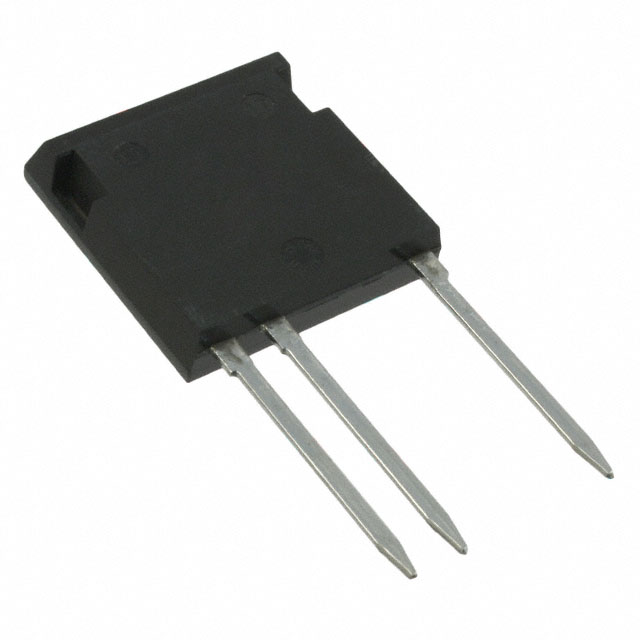

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IXGF36N300 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IXGF36N300 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IXGF36N300 |
|---|---|
| Manufacturer | IXYS Corporation |
| Description | IGBT 3000V 36A 160W I4-PAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 25 pcs | ||||
|---|---|---|---|---|---|
| $17.279 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IXGF36N300 | Manufacturer | IXYS Corporation |
|---|---|---|---|
| Description | IGBT 3000V 36A 160W I4-PAK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2128 pcs | Data sheet | IXGF36N300 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 3000V |
| Vce(on) (Max) @ Vge, Ic | 5.2V @ 15V, 100A | Test Condition | - |
| Td (on/off) @ 25°C | - | Switching Energy | - |
| Supplier Device Package | ISOPLUS i4-PAC™ | Series | - |
| Power - Max | 160W | Packaging | Tube |
| Package / Case | i4-Pac™-5 (3 Leads) | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Standard | IGBT Type | - |
| Gate Charge | 136nC | Detailed Description | IGBT 3000V 36A 160W Through Hole ISOPLUS i4-PAC™ |
| Current - Collector Pulsed (Icm) | 400A | Current - Collector (Ic) (Max) | 36A |
