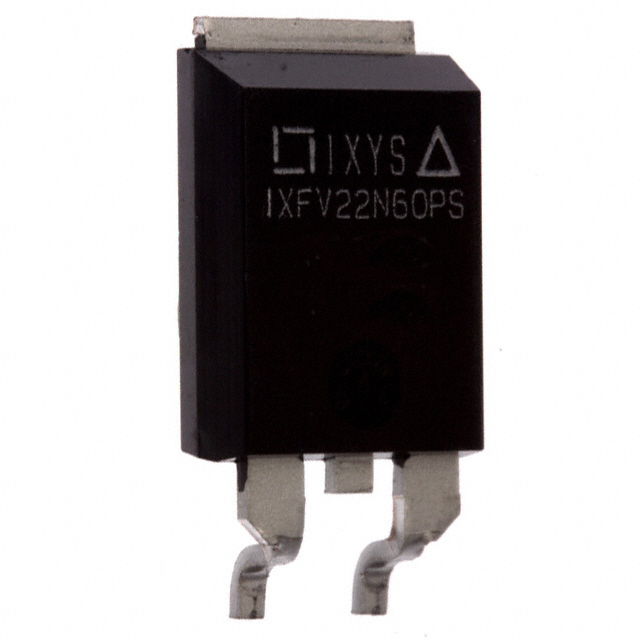

IXFV22N60PS
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IXFV22N60PS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IXFV22N60PS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IXFV22N60PS |
|---|---|
| Manufacturer | IXYS Corporation |
| Description | MOSFET N-CH 600V 22A PLUS220-SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IXFV22N60PS | Manufacturer | IXYS Corporation |
|---|---|---|---|
| Description | MOSFET N-CH 600V 22A PLUS220-SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4191 pcs | Data sheet | IXFH22N60P, IXFV22N60P/PS |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 5.5V @ 4mA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PLUS-220SMD | Series | HiPerFET™, PolarHT™ |
| Rds On (Max) @ Id, Vgs | 350 mOhm @ 11A, 10V | Power Dissipation (Max) | 400W (Tc) |
| Packaging | Tube | Package / Case | PLUS-220SMD |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 3600pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 58nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 600V |
| Detailed Description | N-Channel 600V 22A (Tc) 400W (Tc) Surface Mount PLUS-220SMD | Current - Continuous Drain (Id) @ 25°C | 22A (Tc) |
